Air Hydraulic Blind Rivet Installation Tool
Air Hydraulic Blind Rivet Installation Tool is a high-efficiency fastening tool designed for quick, reliable, and fatigue-free installation of blind rivets in industrial assembly production lines, construction, and maintenance applications. It combines compressed air power with hydraulic intensification to deliver a strong, consistent pulling force, ensuring secure rivet…
Read the full description ↓
Air Hydraulic Blind Rivet Installation Tool

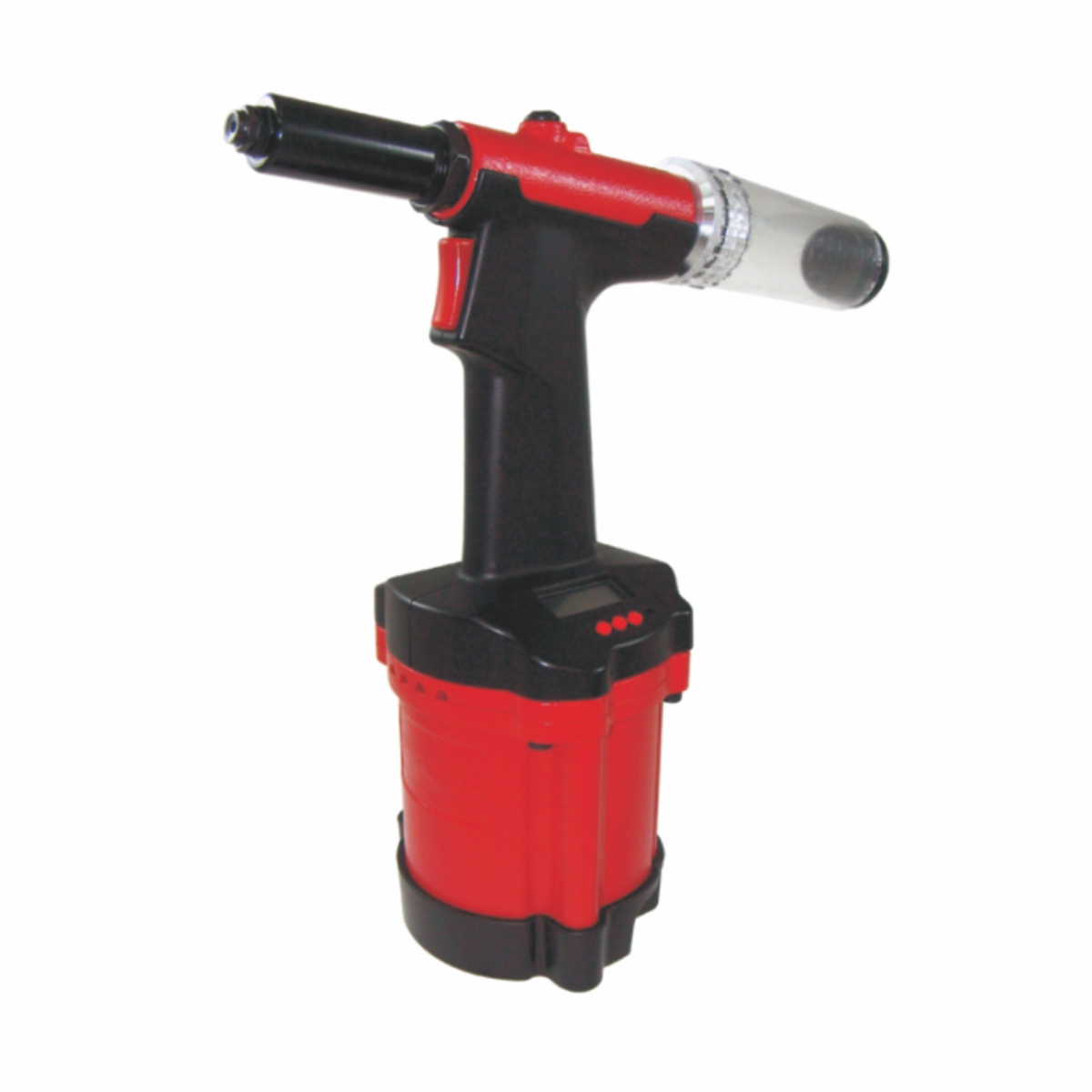

ZT0922DThe ZT0922D shares the ZT0922's 2,000 lbf (920 kgf), 7/8-inch (22mm), 4.2 lb (1.9 kg) spec, adding the digital module.
View details
The ZT1017VSN-5 3/16-inch Air Hydraulic Riveter (Vacuum type) pulls 2,248 lbf (1,022 kgf) through a 43/64-inch (17mm) stroke, at 4.3 lb (1.95…
View details
The ZT1017VSN-6 shares the ZT1017VSN-5's 2,248 lbf (1,022 kgf), 43/64-inch (17mm), 4.3 lb (1.95 kg) spec, fitted for up to 6.4mm blind…
View details
The ZT1214L shares the ZT1214T's 2,460 lbf (1,200 kgf), 9/16-inch (14mm) drive in a lever-type body, at 4.16 lb (1.89 kg).
View details
The ZT1214LV adds vacuum collection to the ZT1214L's lever-type, 2,460 lbf (1,200 kgf) drive, at 4.27 lb (1.94 kg).
View details
The ZT1214T steps up to 2,460 lbf (1,200 kgf) traction on a shorter 9/16-inch (14mm) stroke, at 4.16 lb (1.89 kg) --…
View details
The ZT1214VS-5 jumps to 2,640 lbf (1,200 kgf) traction on a shorter 9/16-inch (14mm) stroke, at 4.27 lb (1.94 kg) -- rated…
View details
The ZT1214VS-6 shares the ZT1214VS-5's 2,640 lbf (1,200 kgf), 9/16-inch (14mm), 4.27 lb (1.94 kg) spec, fitted for up to 6.4mm blind…
View details
The ZT1218 1/4-inch Air Hydraulic Riveter runs 2,523 lbf (1,150 kgf) traction on a 23/32-inch (18mm) stroke, at 4.2 lb (1.9 kg)…
View details
Air Hydraulic Blind Rivet Installation Tool
ZT1218DThe ZT1218D shares the ZT1218's 2,523 lbf (1,150 kgf), 23/32-inch (18mm), 4.2 lb (1.9 kg) spec, adding the digital module.
View details
The ZT1528 1/4-inch Air Hydraulic Riveter jumps to 3,300 lbf (1,500 kgf) traction on a longer 1-1/8-inch (28mm) stroke, at 5.6 lb…
View details
Air Hydraulic Blind Rivet Installation Tool
ZT1528DThe ZT1528D shares the ZT1528's 3,300 lbf (1,500 kgf), 1-1/8-inch (28mm), 5.6 lb (2.5 kg) spec, adding the digital module.
View detailsAbout air hydraulic blind rivet installation tool
Air Hydraulic Blind Rivet Installation Tool is a high-efficiency fastening tool designed for quick, reliable, and fatigue-free installation of blind rivets in industrial assembly production lines, construction, and maintenance applications. It combines compressed air power with hydraulic intensification to deliver a strong, consistent pulling force, ensuring secure rivet setting across aluminum, steel, stainless steel, and structural rivets. The smooth hydraulic action provides controlled fast cycle times while reducing vibration and operator effort compared to manual or purely pneumatic riveters.
Its durable body, precision internal components, and reinforced hydraulic system ensure long service life, dependable performance, and resistance to continuous heavy-duty use. The lightweight ergonomic design improves handling and allows operators to work comfortably in tight or elevated spaces while maintaining high accuracy and repeatability. Easy maintenance and simple trigger operation further enhance productivity on the job.
The Air Hydraulic Blind Rivet Installation Tool is ideal for automotive assembly, appliance manufacturing, metal fabrication, construction sites, and general industrial environments where strong, consistent riveting, reduced operator fatigue, and high production efficiency are essential for professional-quality fastening results.
