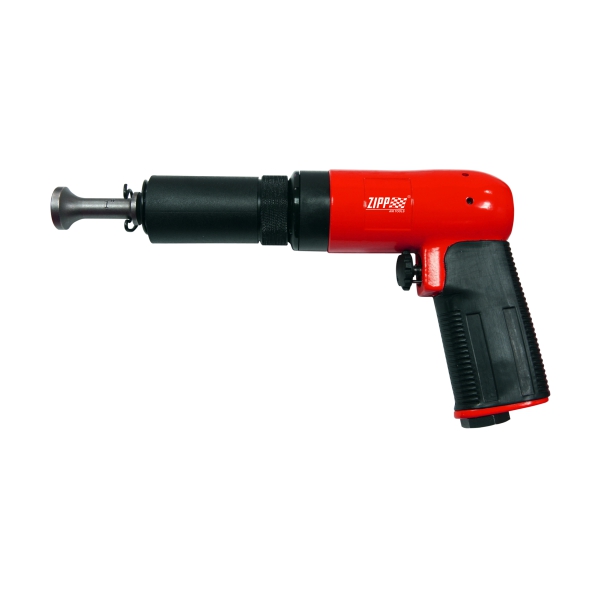

ZRH-06 – Shock Reduced Air Riveting Hammer
Precision Air Riveting with Enhanced Operator Comfort
The ZRH-06 Shock-Reduced Air Riveting Hammer is designed for industrial and aerospace riveting applications, delivering high-impact performance with reduced vibration. Its advanced shock-reduction technology protects operators from hand-arm vibration syndrome (HAVS) while maintaining consistent and precise riveting results. Perfect for metal fabrication, automotive assembly, and aircraft maintenance, the ZRH-06 offers durable and reliable operation, along with user-friendly ergonomics, enabling extended use without fatigue.
Key Features
Shock Reduction Technology – Minimizes vibration for safer, more comfortable operation.
High-Impact Performance – Ensures consistent riveting with every stroke.
Ergonomic Grip – Designed for optimal handling and operator comfort.
Industrial-Grade Durability – Constructed from high-strength materials for longevity.
Precision Control – Balanced design provides accurate riveting in tight spaces.
Technical Specifications
Model: ZRH-06
Type: Shock-Reduced Air Riveting Hammer
Impact Frequency: High-speed pneumatic operation
Handle Type: Ergonomic shock-reducing grip
Weight: Lightweight for easy maneuverability
Air Pressure Requirement: Standard industrial air supply
Applications: Suitable for aerospace, automotive, and industrial riveting tasks
Benefits
Reduced Operator Fatigue – Advanced shock-absorbing system protects hands and arms.
Improved Accuracy – Balanced design enables precise rivet placement.
Reliable and Durable – Built for demanding industrial environments.
Safety-Focused – Reduces risk of vibration-related injuries.
Versatile Applications – Ideal for sheet metal, structural, and aerospace riveting.
Applications
Aerospace Assembly & Maintenance – Panel and structural riveting.
Automotive Manufacturing & Repair – Bodywork, chassis, and sheet metal riveting.
Industrial Fabrication – Steel fabrication and heavy-duty assembly.
On-Site Maintenance – Portable solution for efficient riveting operations.
Why Choose the ZRH-06?
The ZRH-06 Shock Reduced Air Riveting Hammer combines precision, power, and safety, making it an essential tool for professional riveting applications. Its shock-absorbing ergonomic design ensures consistent performance and operator comfort, even during prolonged use.
Features
- The new ZRH riveting hammer is designed to minimize the vibration while maintaining high tool performance. An adequate air cushion behind the hammer piston reduces vibration.
- Parts are interchangeable with the RRH series.
- Streamline profile & adjustable power.
- Equipped with a universal swivel air inlet joint for the best maneuverability.
Specification:
- Chisel Shank Opening: 0.401 inch
- Bore Diameter: 15.24 mm
- Piston Stroke: 102 mm
- Blows Per Minute: 2160 bpm
- Overall Length: 225 mm
- Air Inlet: 1/4 PT
- Air Hose(I.D): 9.5 mm
- Net Weight: 1.33 kg
- Air Consumption: 19 cfm
- Max. Rivet Diameter Capacity / Dural: 5/32~1/4(4~7) inch(mm)
- Max. Rivet Diameter Capacity / Steel: 1/8~1/4(3~6) inch(mm)
Use for the aerospace & general automotive industries, among others.
| Model | Chisel Shank Opening | Bore Diameter mm | Piston Stroke mm | bpm | Overall Length mm | Air Hose (I.D) mm | Weight kg | Air Consumption cfm | Vibration m/s² | Max. Rivet Diameter Capacity | |
| Dural inch(mm) | Steel inch(mm) | ||||||||||
| ZRH-04 | 0.401 | 15.24 | 40 | 3960 | 180 | 9.5 | 1 | 6 | 2.5 | 3/32~3/16(2~5) | 3/21~5/32(1~4) |
| ZRH-06 | 0.401 | 15.24 | 102 | 2160 | 225 | 9.5 | 1.33 | 19 | 3.9 | 5/32~1/4(4~7) | 1/8~1/4(3~6) |
| ZRH-08 | 0.401 | 15.24 | 137 | 1440 | 280 | 9.5 | 1.33 | 21 | 4.8 | 3/16~5/16(5~8) | 5/32~1/4(4~7) |
