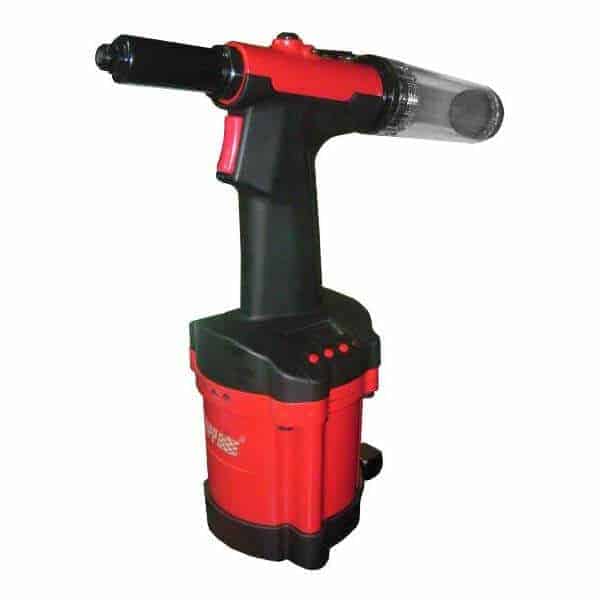

ZT0922 3/16 Inch Air Hydraulic Riveter

The ZT0922 3/16 inch Air Hydraulic Riveter is a compact, high-efficiency pneumatic riveting tool engineered for durability, precision, and operator comfort. Built with a powerful hydraulic drive and optimized air system, it provides stable and consistent performance for medium-duty fastening tasks. Its lightweight construction, quick cycle operation, and ergonomic design make it ideal for continuous use in industrial environments where speed, reliability, and precision are required.

Features

• Strong air hydraulic drive designed for secure installation of 3/16 inch rivets

• Lightweight aluminum housing for durability and ease of operation

• Ergonomic handle and balanced body minimize operator fatigue during extended use

• Quick cycle time with efficient mandrel ejection to increase productivity

• Heavy-duty internal components for long service life and reduced maintenance

• Low air consumption with powerful output for energy-efficient performance

Applications

The ZT0922 Air Hydraulic Riveter is suitable for a wide range of manufacturing and maintenance tasks, including

• Automotive body and chassis assembly

• Electronics and appliance manufacturing

• Aerospace component fastening and light structural repair

• HVAC ductwork and sheet metal fabrication

• General industrial production requiring repetitive riveting operations

Performance Advantages

• Consistent Strength: Provides a stable riveting force for aluminum, steel, and stainless steel rivets

• Productivity Gains: Fast cycle operation and efficient mandrel ejection reduce downtime and increase output

• Operator Comfort: Lightweight, balanced design allows for more extended working periods with less strain

• Durability: Built with robust internal components for reliable performance under continuous industrial use

• Cost Efficiency: Long service life and low maintenance requirements reduce total operating costs

Why Choose ZT0922

The ZT0922 3/16 inch Air Hydraulic Riveter is designed to deliver a balance of power, speed, and comfort in a compact form. It offers consistent fastening performance, easy handling, and long-lasting durability, making it a dependable tool for workshops, assembly lines, and manufacturing facilities that demand high-quality riveting performance.

Features

• Features with the most advanced patented digital module to enable operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
• It will also remind operators when to do service or maintenance to the tool at the proper intervals.
• It will help to cease the controversy about the warranty issue, especially if the tool has been misused or abused with abnormally high air pressure, which exceeds the design specification.
• Built with patented “Module units assembled in composite clam shell housing” for the ease of tool service.
• Patented “Broken mandrel vacuum collection system” for the cleanliness and safety of the work area.
• Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
• Easy-to-adjust head and nut designed for obtaining the most effective stroke.
• Ergonomic texture-coated composite housing for the operator’s comfort.
• The swivel air inlet design enhances maneuverability.

• Aluminum Alloy Forged Hydraulic Section
• Collection Bottle
• Air Actuating Module
• Composite Clam Shell Housing
• AAA Battery Port
• LCD Module
• USB Port
• Vacuum ON/OFF Switch
• Spare Nose Pieces Port

Specification:

• Traction Power: 2000(920) Ibf(kgf)
• Stroke Length: 22 mm
• Net Weight: 4.2(1.9) lbs(kgs)
• Operating Air Pressure: 90(6.2) PSI(bar)
• Air inlet Size: 1/4 inch-NPT/PT
• Min. Hose Size: 3/8(10) inch(mm)
• Nosepieces Equipped: 5/32(4.0)3/16(4.8)Monobolt 3/16(4.8) inch(mm)
• Max. 3/16″(4.8mm) structural rivets in all materials

DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
