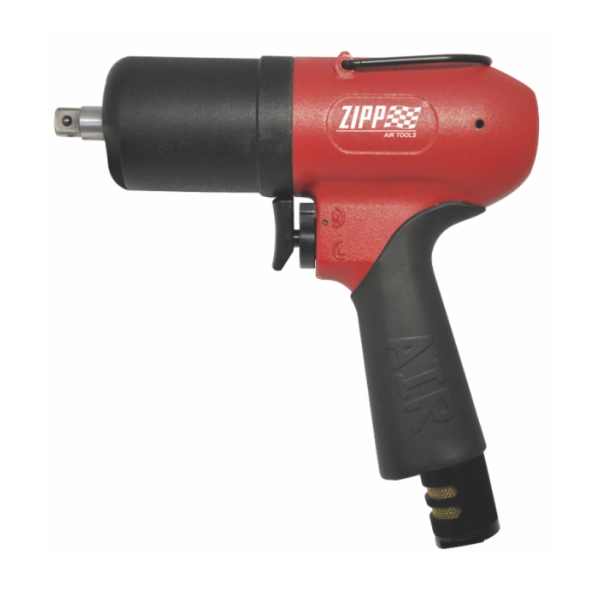

PS073 Pulse Wrench / Pistol Type, Auto Shut-Off Type
- X-Shape Sealing improves repeatability and durability.
- Twin drive roller blades reduce noise, vibration and improves impulse efficiency.
- 1 Piece design front end plate and cylinder improves motor efficiency.
- Double chamber air motor
9 Vanes motor design for smallest dimensions with highest power and acceleration results in a short time to reach the set torque and highest The required torque can be easily productivity. - One hand reverse operation for Right or Left handed operators.
- Low noise exhaust, 360º adjustable.
- Easy Torque Adjustment
The required torque can be easily adjusted by turning the adjust screw through the housing.
Specification:
- Hex Drive: 3/8″ SD
- Bolt Capacity: M8~M10
- Measured on Hard Joint
Min. Oil Pressure / 0.4MPa: 20(14.8) Nm(Lb-ft)
Min. Oil Pressure / 0.5MPa: 20(14.8) Nm(Lb-ft)
Min. Oil Pressure / 0.6MPa: 23(17) Nm(Lb-ft)
Max. Oil Pressure / 0.4MPa: 36(26.6) Nm(Lb-ft)
Max. Oil Pressure / 0.5MPa: 39(28.8) Nm(Lb-ft)
Max. Oil Pressure / 0.6MPa: 42(31) Nm(Lb-ft)
- Free Speed: 5500 rpm
- Air Cons.: 0.45 m3/min
- Noise Level: 88 dB(A)
- Net Weight: 1.3 kg
- Air Inlet Size: NPT 1/4″
- Recommended Gauge Air Pressure: 60~90psi(4kg/cm²~6kg/cm² )(0.4Mpa~0.6Mpa)
- Air Hose Size: 10mm x 6.5mm (for 043~063 model ), 12mm x 8mm (for 073~094 model)
- Above DATA Are All Measured At 4kg/cm²~6kg/cm² Gauge Air Pressure
Model | Square Drive | Bolt Capacity mm | Measured on Hard Joint / Nm(Lb-ft) | Free Speed rpm | Air Cons. m³/min | Noise Level dB(A) | Net Weight kg | |||||
Min. Oil Pressure | Max. Oil Pressure | |||||||||||
0.4MPa | 0.5MPa | 0.6MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||||
PS043 | 3/8″SD | M4~M6 | 5(3.7) | 6(4.4) | 7(5.2) | 10(7.4) | 11(8.1) | 12(8.9) | 4500 | 0.4 | 80 | 1.06 |
PS053 | 3/8″SD | M6~M8 | 10(7.4) | 11(8.1) | 12(8.9) | 20(14.8) | 20(14.8) | 23(17) | 5800 | 0.4 | 85 | 1.06 |
PS063 | 3/8″SD | M6~M8 | 11(8.1) | 12(8.9) | 13(9.6) | 20(14.8) | 22(16.2) | 25(18.4) | 5800 | 0.43 | 85 | 1.08 |
PS073 | 3/8″SD | M8~M10 | 20(14.8) | 20(14.8) | 23(17) | 36(26.6) | 39(28.8) | 42(31) | 5500 | 0.45 | 88 | 1.3 |
PS084 | 1/2″SD | M10~M12 | 5500 | 0.5 | 88 | 1.42 | ||||||
PS094 | 1/2″SD | M10~M12 | 5500 | 0.55 | 88 | 1.61 |
