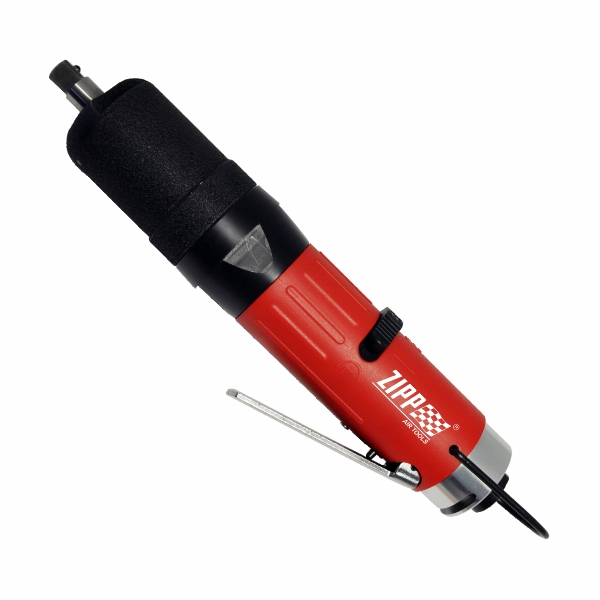

SN084 pulse Wrench / In Line Type, Non Shut-Off Type
- X-Shape Sealing improves repeatability and durability.
- Twin drive roller blades reduce noise, vibration and improves impulse efficiency.
- 1 Piece design front end plate and cylinder improves motor efficiency.
- Double chamber air motor
9 Vanes motor design for smallest dimensions with highest power and acceleration results in a short time to reach the set torque and highest The required torque can be easily productivity. - One hand reverse operation for Right or Left handed operators.
- Low noise exhaust, 360º adjustable.
- Easy Torque Adjustment
The required torque can be easily adjusted by turning the adjust screw through the housing.
Specification:
- Hex Drive: 1/2″ SD
- Bolt Capacity: M10~M12
- Measured on Hard Joint
Min. Oil Pressure / 0.4MPa: 35(25.8) Nm(Lb-ft)
Min. Oil Pressure / 0.5MPa: 38(28) Nm(Lb-ft)
Min. Oil Pressure / 0.6MPa: 41(30.2) Nm(Lb-ft)
Max. Oil Pressure / 0.4MPa: 51(37.6) Nm(Lb-ft)
Max. Oil Pressure / 0.5MPa: 54(39.8) Nm(Lb-ft)
Max. Oil Pressure / 0.6MPa: 57(42) Nm(Lb-ft)
- Free Speed: 6000 rpm
- Air Cons.: 0.45 m3/min
- Noise Level: 88 dB(A)
- Net Weight: 1.3 kg
- Air Inlet Size: NPT 1/4″
- Recommended Gauge Air Pressure: 60~90psi(4kg/cm²~6kg/cm² )(0.4Mpa~0.6Mpa)
- Air Hose Size: 10mm x 6.5mm (for 043~063 model ), (for 073~084 model)
- Above DATA Are All Measured At 4kg/cm²~6kg/cm² Gauge Air Pressure
| Model | Square Drive |
Bolt Capacity mm |
Measured on Hard Joint / Nm(Lb-ft) | Free Speed rpm |
Air Cons. m³/min |
Noise Level dB(A) |
Net Weight kg |
|||||
| Min. Oil Pressure | Max. Oil Pressure | |||||||||||
| 0.4MPa | 0.5MPa | 0.6MPa | 0.4MPa | 0.5MPa | 0.6MPa | |||||||
| SS043 | 3/8″SD | M4~M6 | 5(3.7) | 6(4.4) | 7(5.2) | 10(7.4) | 11(8.1) | 12(8.9) | 4500 | 0.4 | 80 | 0.87 |
| SS053 | 3/8″SD | M6~M8 | 10(7.4) | 11(8.1) | 12(8.9) | 20(14.8) | 20(14.8) | 23(17) | 6000 | 0.4 | 85 | 0.85 |
| SS063 | 3/8″SD | M6~M8 | 11(8.1) | 12(8.9) | 13(9.6) | 20(14.8) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.88 |
| SS073 | 3/8″SD | M8~M10 | 20(14.8) | 20(14.8) | 23(17) | 36(26.6) | 39(28.8) | 42(31) | 6000 | 0.45 | 88 | 1.29 |
| SS084 | 1/2″SD | M10~M12 | 6000 | 0.45 | 88 | 1.3 | ||||||
| SN043 | 3/8″SD | M6~M8 | 9(6.6) | 11(8.1) | 13(9.6) | 13(9.6) | 15(11.1) | 17(12.5) | 5600 | 0.4 | 80 | 0.87 |
| SN053 | 3/8″SD | M6~M8 | 15(11.1) | 18(13.3) | 21(15.5) | 19(14) | 22(16.2) | 25(18.4) | 6000 | 0.4 | 85 | 0.85 |
| SN063 | 3/8″SD | M8~M10 | 20(14.8) | 23(17) | 26(19.2) | 28(20.7) | 31(22.9) | 34(25.1) | 6000 | 0.4 | 85 | 0.88 |
| SN073 | 3/8″SD | M8~M10 | 28(20.7) | 31(22.9) | 34(25.1) | 42(31) | 45(33.2) | 48(35.4) | 6000 | 0.45 | 88 | 1.29 |
| SN084 | 1/2″SD | M10~M12 | 35(25.8) | 38(28) | 41(30.2) | 51(37.6) | 54(39.8) | 57(42) | 6000 | 0.45 | 88 | 1.3 |
