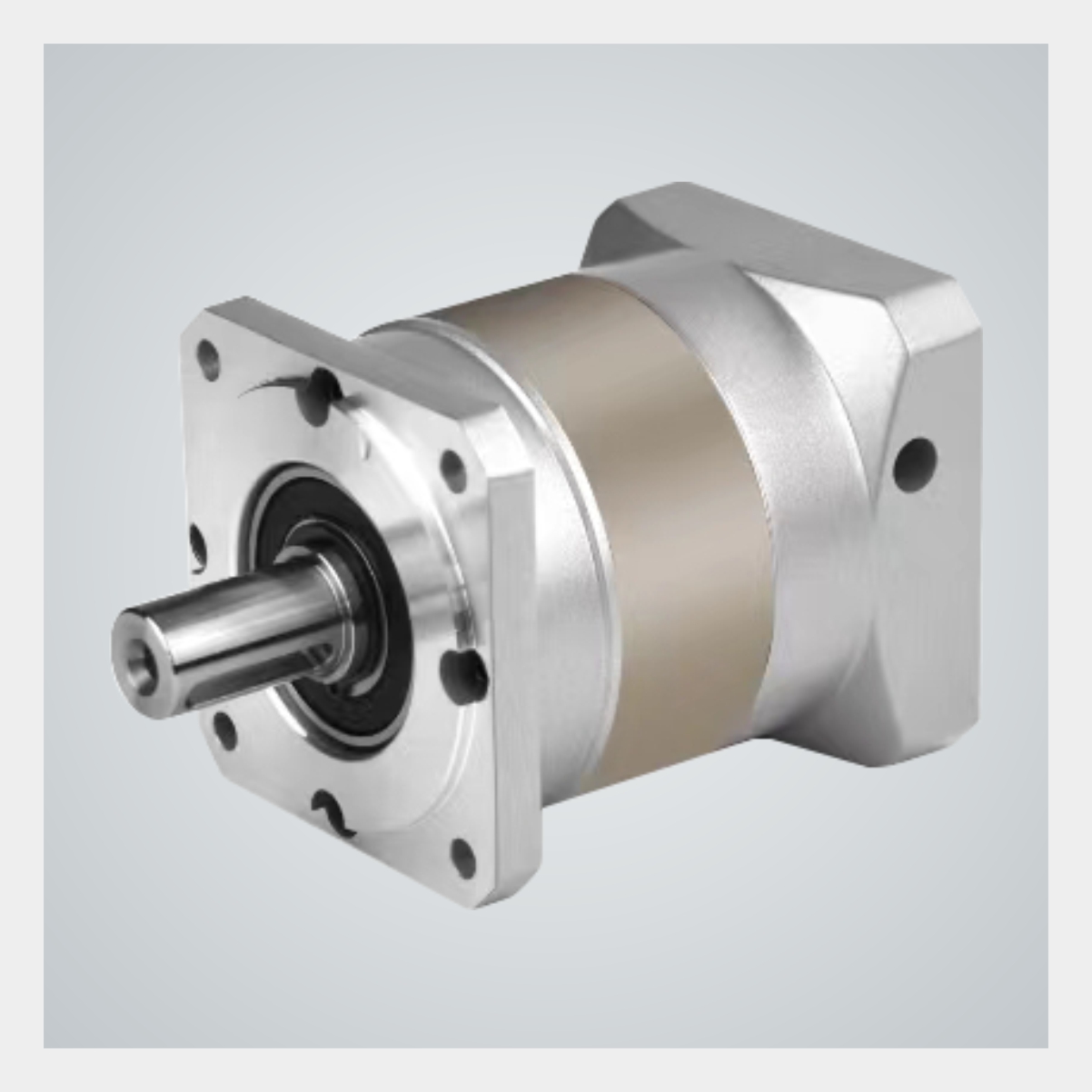

Precision Gear Reducer
(Also known as Precision Gearbox / Planetary Gear Reducer / Servo Gear Reducer)
Precision Gear Reducer is a high-accuracy transmission device engineered to deliver smooth, stable, and efficient torque reduction for automation systems, robotics, CNC machinery, packaging equipment, and advanced industrial applications. It uses precisely machined gears and optimized gear-mesh geometry to achieve low backlash, high torque density, and excellent positioning accuracy, ensuring reliable motion control and consistent performance even under continuous heavy loads.
Built with high-quality materials and a rigid housing, the reducer provides a long service life, minimal wear, and strong resistance to vibration and impact. Its compact, lightweight design allows easy integration into limited spaces while maintaining high efficiency and quiet operation. Multiple gear ratios and mounting options support flexible configuration for various industrial machines and motion control systems.
Precision Gear Reducer is ideal for robot arms, semiconductor equipment, automated production lines, inspection systems, and high-performance machinery that require accurate speed reduction, improved repeatability, enhanced stability, and dependable precision in modern smart manufacturing environments.
Working Principle
Input Rotation: Motor or drive system provides rotational power to the reducer’s input shaft.
Gear Reduction: An internal planetary or helical gear train reduces speed by the gear ratio (e.g., 3:1, 10:1, 100:1).
Torque Multiplication: As speed decreases, torque increases proportionally at the output shaft.
High Precision Motion Output: The precision-ground gears and low-backlash design ensure exact positioning and smooth motion.
Key Features
High Precision: Backlash as low as ≤1 arc-min for servo-grade models.
High Efficiency: Transmission efficiency up to 97–99%.
High Torque Density: Compact size with powerful output torque.
Smooth and Quiet Operation: Helical gear designs reduce vibration and noise.
Durable Construction: Alloy steel gears and hardened housings ensure long service life.
Mounting Versatility: Compatible with servo, stepper, and AC motors.
Common Types of Precision Gear Reducers
| Type | Description | Typical Application |
|---|---|---|
| Planetary Gear Reducer | Uses sun, planet, and ring gears for balanced load and compact size | Servo drives, robotics, automation |
| Helical Gear Reducer | Uses angled teeth for smoother and quieter motion | CNC machines, packaging lines |

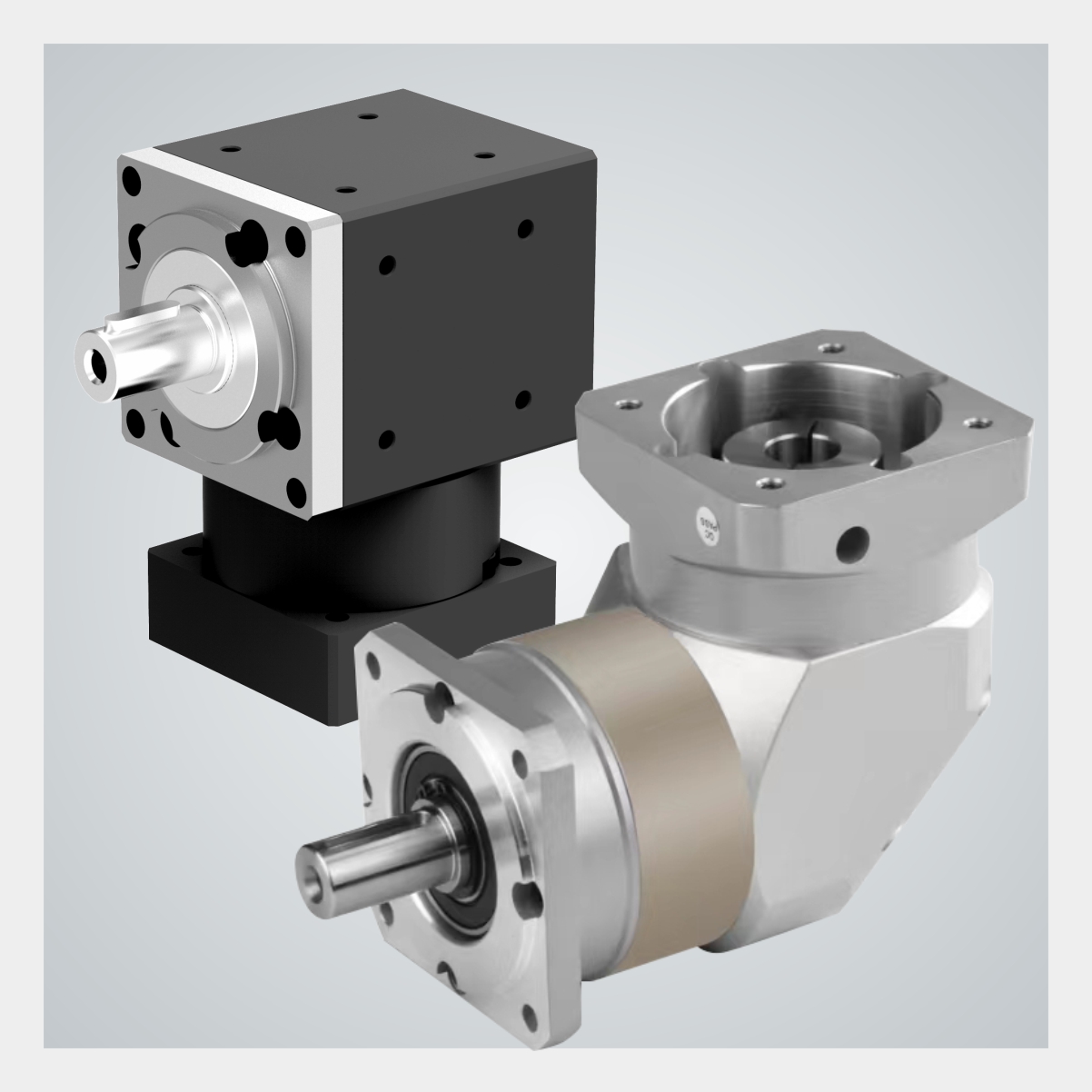

| Right Angle Gear Reducer | Includes bevel or hypoid gears for 90° power transfer | Space-saving assemblies |
| Spur Gear Reducer | Simple design with straight gears | Light-duty motion systems |
| Harmonic Drive (Strain Wave) | Flexible spline design for ultra-low backlash | Robotics, precision positioning |
Applications
Industrial Robots and Automation Systems
CNC Machining Centers and Lathes
Conveyor Drives and Pick-and-Place Units
Packaging, Printing, and Semiconductor Equipment
Aerospace and Optical Equipment
Advantages
Increases motor torque while maintaining accuracy.
Reduces mechanical vibration and improves system stability.
Compact, space-efficient design for modern automation.
Extends motor lifespan by reducing load stress.
