Torque Multiplier

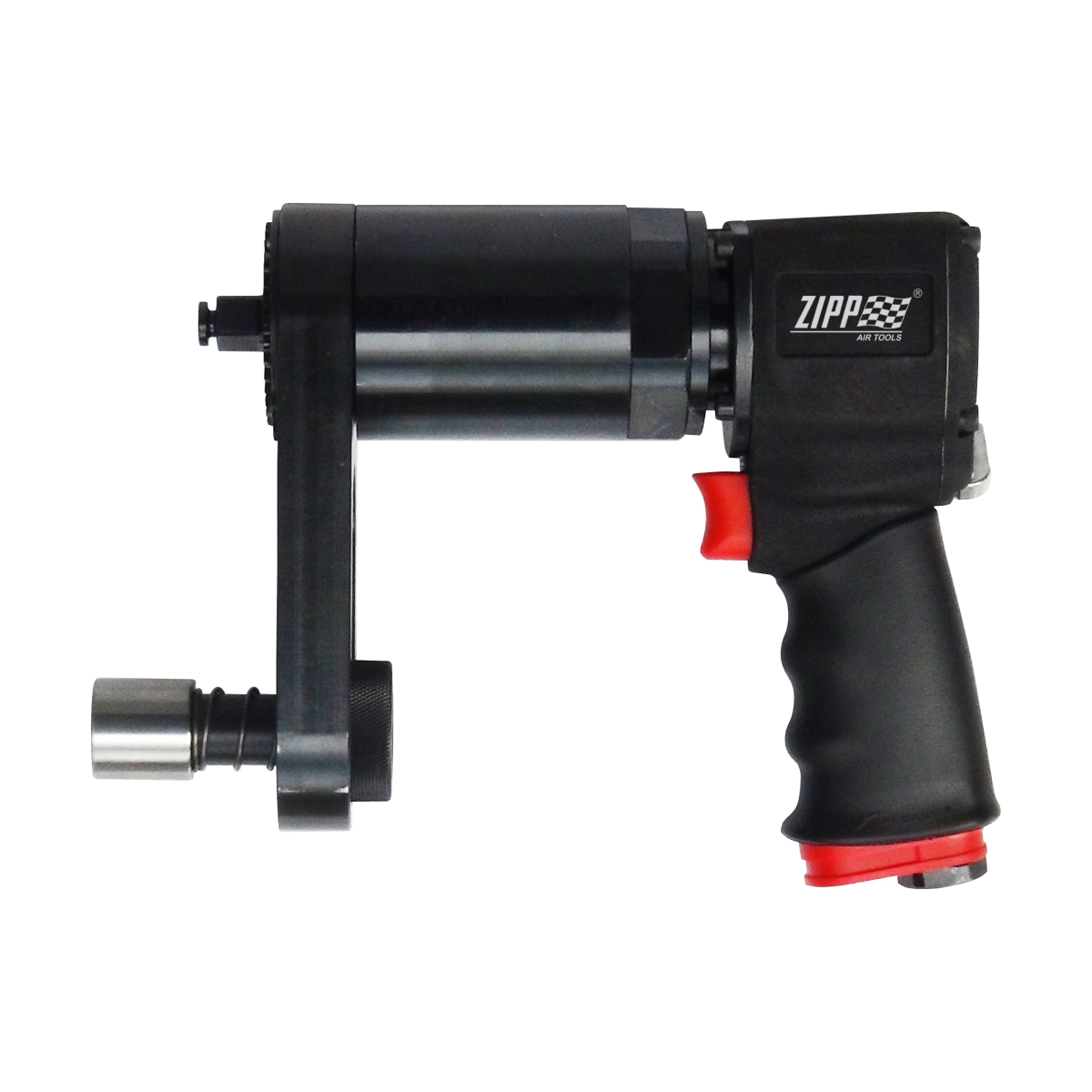

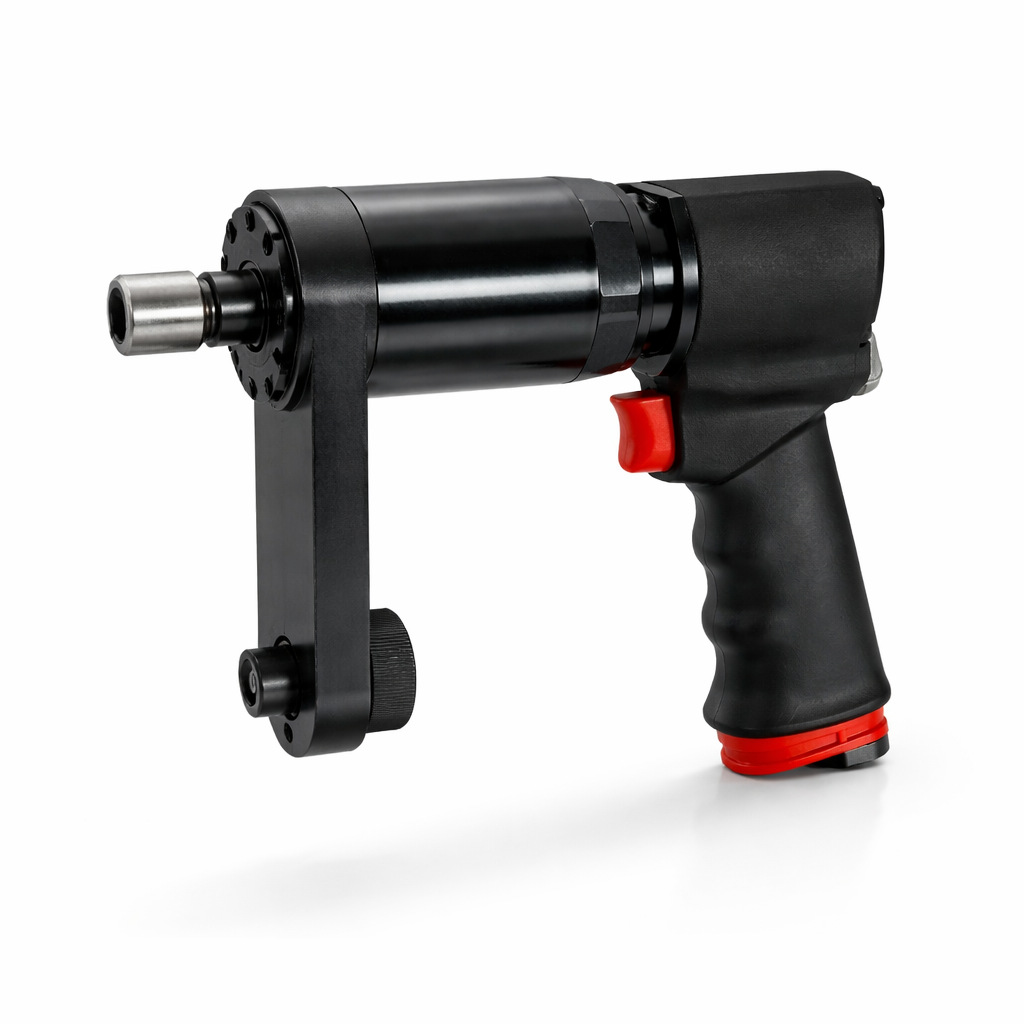

ATM200 1/2 inch Pneumatic Torque Multiplier Specification: Square Drive: 1/2(12.7) inch(mm) Free Speed: 84 rpm Max. Torque : 147.5(200) ft-lb(Nm) Operating Air Pressure: 90(6.2) PSI(bar) Avg. Air Cons.: 11.2(320) cfm(l/min) Net Weight: 10.14(4.6) lbs(kgs) Min. Hose Size: 3/8(10) inch(mm) Air Inlet Size: 1/4 inch-NPT/PT Model Square Drive inch(mm) Free Speed rpm Max. Torque ft-lb(Nm) [...]
Torque Multiplier

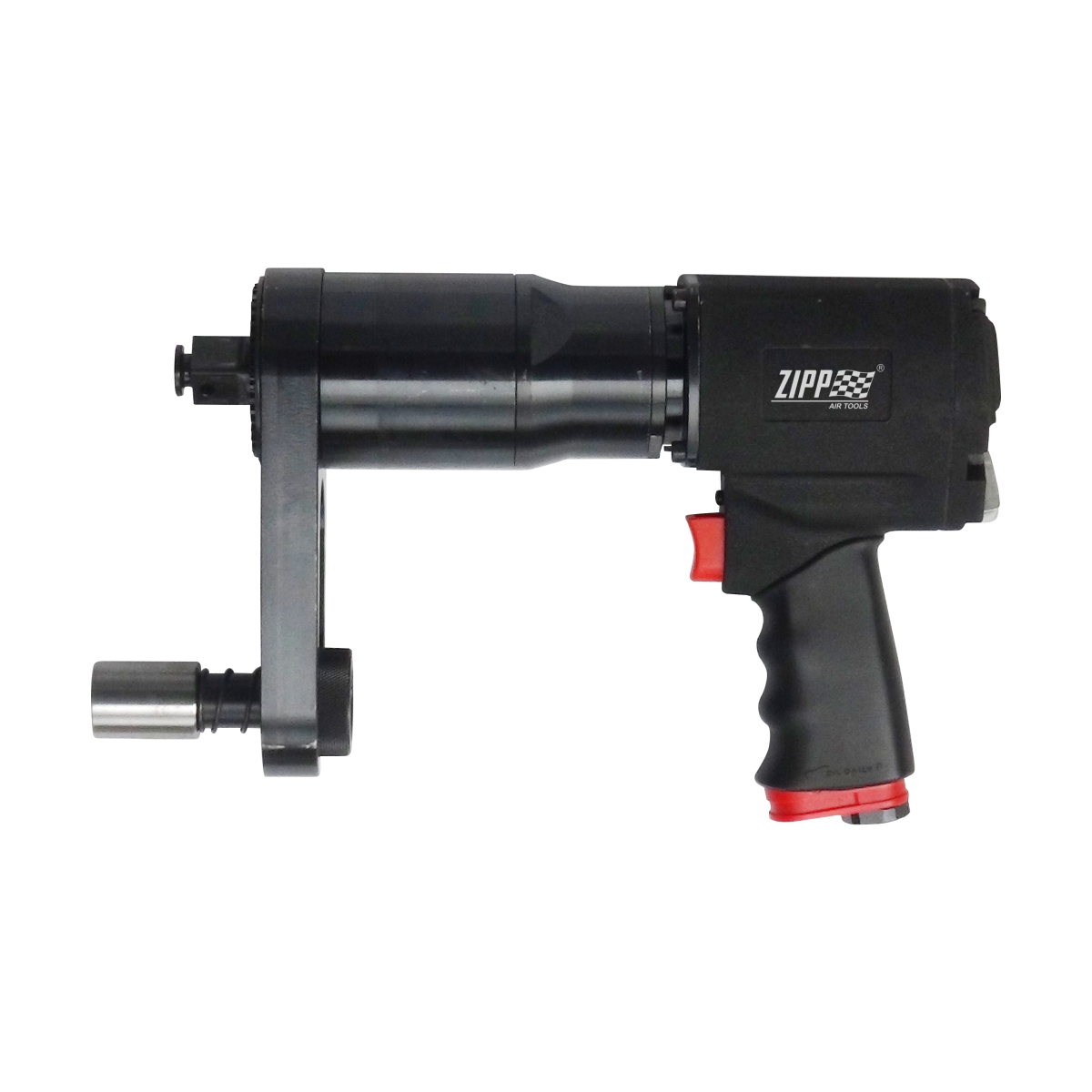

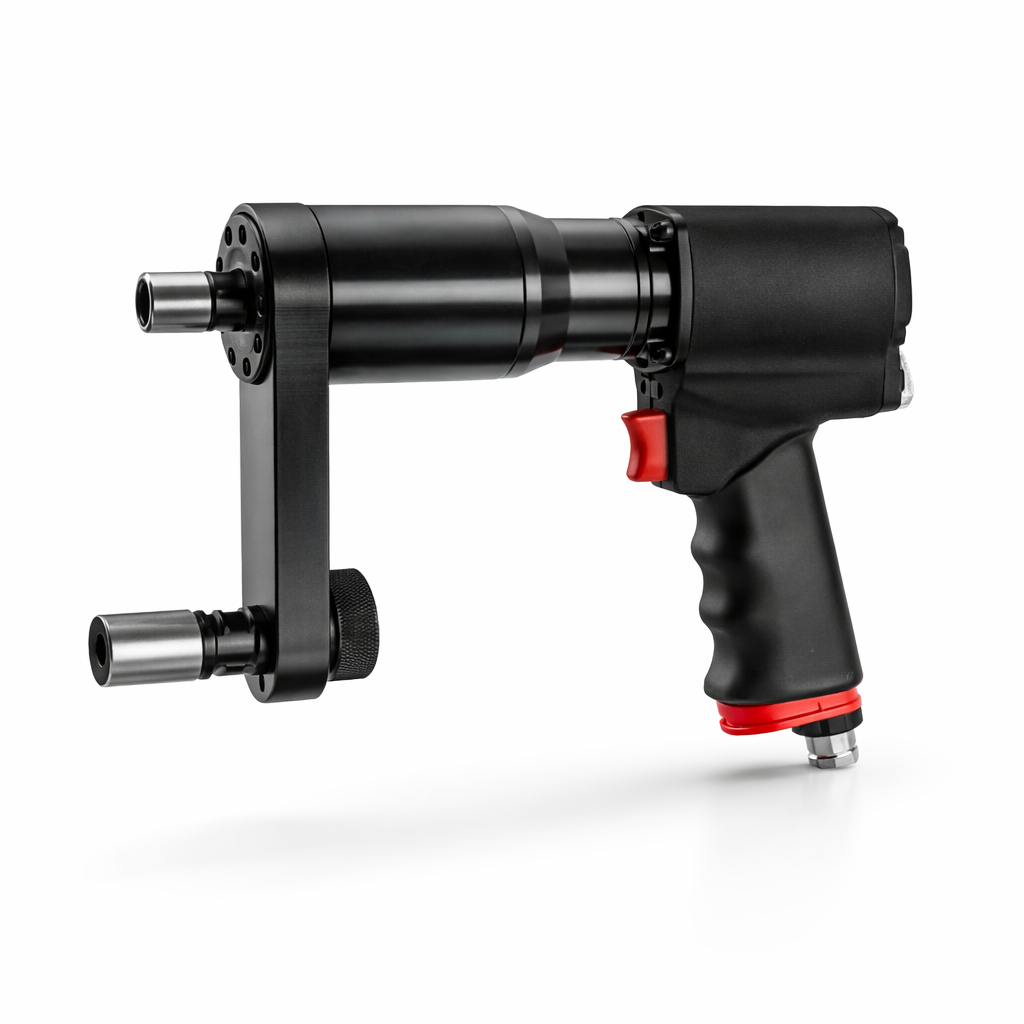

ATM700 3/4 inch Pneumatic Torque Multiplier Specification: Square Drive: 3/4(19) inch(mm) Free Speed: 18 rpm Max. Torque : 516 (700) ft-lb(Nm) Operating Air Pressure: 90(6.2) PSI(bar) Avg. Air Cons.: 12.25(350) cfm(l/min) Net Weight: 14.33(6.5) lbs(kgs) Min. Hose Size: 3/8(10) inch(mm) Air Inlet Size: 1/4 inch-NPT/PT Model Square Drive inch(mm) Free Speed rpm Max. Torque [...]
