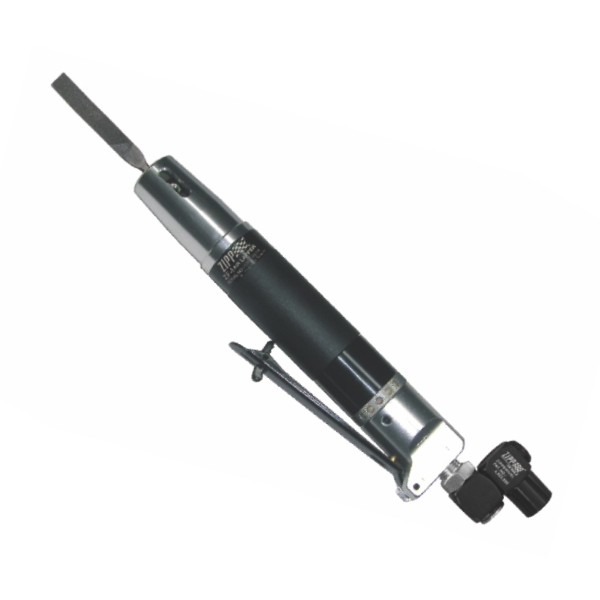

ZF-10T Low Vibration Air File – Enhanced Precision and Safety
The ZF-10T Low Vibration Air File is a high-performance tool for precision filing and surface finishing in industrial and professional applications. This air file features advanced vibration-dampening technology and a safety trigger, providing optimal control, comfort, and safety for extended use in demanding environments.
Key Features:
- Low Vibration Design
- Significantly minimizes vibration to enhance user comfort and reduce fatigue.
- Improves accuracy and consistency in fine-filing tasks.
- Safety Trigger Mechanism
- Ensures controlled operation, reducing the risk of accidental activation.
- Provides additional safety for the operator during use.
- Ergonomic and Durable Construction
- Lightweight yet robust design for prolonged operational life.
- Ergonomically shaped handle for superior grip and reduced strain.
- High Precision Performance
- Delivers consistent filing results, even on intricate surfaces.
- Compatible with various file attachments for versatile applications.
- Efficient Air-Powered Operation
- High-speed motor powered by compressed air for efficient and reliable performance.
- Reduces downtime and maintenance compared to electric alternatives.
Specifications:
- Stroke Length: Optimized for detailed filing and finishing tasks.
- Weight: Lightweight for improved maneuverability and user comfort.
- Housing Material: Durable materials for resistance against wear and tear.
- Air Consumption: Efficient air usage for reduced operational costs.
Applications:
- Metalworking
- It is ideal for precision deburring, finishing, and shaping metal components.
- Mold and Die Crafting
- Ensures smooth and detailed finishes on molds and dies.
- Automotive Industry
- Perfect for surface preparation and repair tasks on automotive parts.
- Woodworking and Plastics
- Versatile for fine filing and finishing on wood and plastic materials.
- General Maintenance and Repairs
- Suitable for a wide range of professional and industrial filing applications.
Why Choose the ZF-10T Low Vibration Air File?
The ZF-10T is a top-tier choice for professionals requiring precision, safety, and durability. Its low-vibration design ensures a comfortable user experience, while the safety trigger adds an extra control layer. Built for reliability and versatility, this air file is an indispensable tool for achieving exceptional results in industrial and professional settings.
Equip yourself with the ZF-10T Low Vibration Air File and elevate your surface finishing tasks to new levels of excellence, safety, and efficiency.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various kinds of surface finishing works such as precise and delicate die & mold surface lapping, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.
- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings, lapping die, and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 9000 bpm
- Stroke Length: 7~10 mm
- Avg. Air Cons.: 3.89(110) cfm(l/min)
- Net Weight: 1.65(0.75) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 4.6 m/s2
- Sound Pressure: 71 dB(A)
Regular File For ZF-5, ZF-5T, ZF-5M, ZF-5MT, ZF-10, ZF-10T, ZF-10M, ZF-10MT Type Air File, 5mm Shank Diameter
325901
Rectangular File
325902
Round File
325903
Half Round File
325904
Triangular File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
| Model | Blows Per Minute bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
| ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
| ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
| ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
| ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
