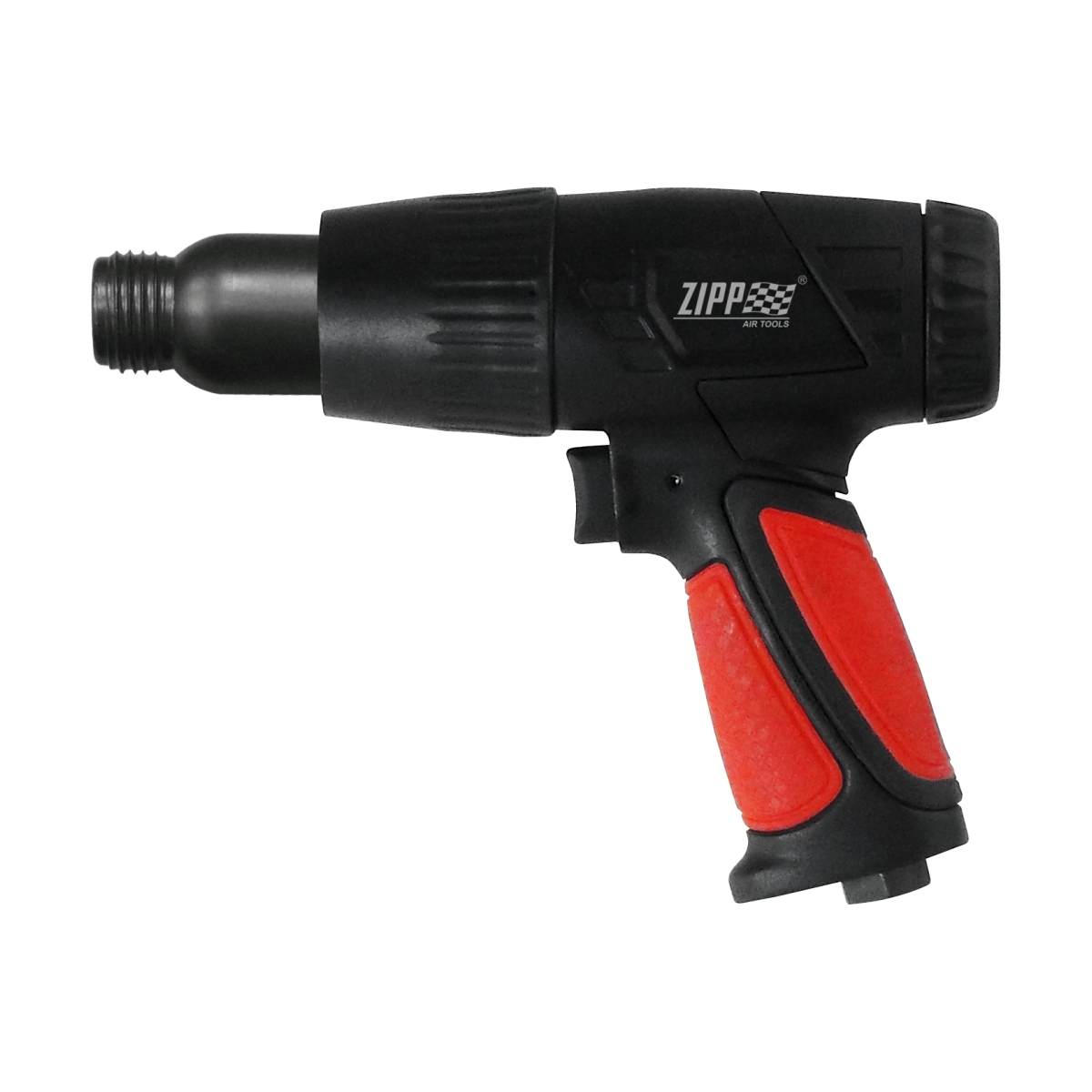

ZAH-392 – Shock Reduced Air Hammer
Industrial-Grade Pneumatic Hammer with Superior Vibration Control
The ZAH-392 Shock Reduced Air Hammer is a high-efficiency air tool designed for professional applications in construction, automotive, metalworking, and maintenance industries. Engineered to provide maximum impact with minimal vibration, this air hammer ensures precision, operator comfort, and long-lasting reliability.
Key Features
Shock-Reduced Operation – Advanced vibration control technology minimizes recoil and hand-arm fatigue, allowing prolonged use without discomfort.
Powerful Impact Force – Delivers consistent, high-speed blows for efficient cutting, chipping, and shaping of tough materials.
Durable Construction – Manufactured with high-quality industrial materials to withstand demanding work environments.
Ergonomic Design – Comfortable grip and optimized balance for superior handling and precise control.
Versatile Tool Compatibility – Supports a variety of pneumatic chisels and attachments, making it ideal for multiple applications.
Reliable Pneumatic Performance – Smooth and stable air-powered operation ensures continuous efficiency.
Technical Specifications
Model: ZAH-392
Type: Shock Reduced Air Hammer
Power Source: Compressed Air
Impact Frequency: High-speed pneumatic operation
Applications: Chipping, cutting, metal shaping, surface preparation
Benefits
Reduced Operator Fatigue – Shock reduction system decreases strain on hands and arms.
Enhanced Productivity – High-speed, consistent impacts speed up heavy-duty tasks.
Rugged and Reliable – Built to handle industrial and construction environments.
Precision Control – Ergonomic design ensures better accuracy and handling.
Multi-Purpose Use – Suitable for automotive, metalworking, maintenance, and construction projects.
Applications
Construction & Demolition: Efficiently chips concrete, masonry, and other hard surfaces.
Automotive & Bodywork: Removes rust, trims metal, and cuts welds.
Industrial Maintenance: Ideal for surface preparation and repair work.
Metalworking & Fabrication: Precision chiseling and shaping of metal components.
Why Choose ZAH-392?
The ZAH-392 Shock Reduced Air Hammer combines industrial-grade power with ergonomics and comfort, making it an indispensable tool for professionals. Its shock reduction technology ensures safer, more efficient operation, enhancing productivity across a wide range of industrial and automotive applications.
Features
- Designed with the following patents to ensure the best shock reduction and operator’s comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension vibration-reducing means for portable pneumatic tools. - Alloy steel-made impact parts are heat-treated for durability.
- Quick-Change Retainer for Simple Accessory Changes.
- Ergonomic handle with a rubber-made exhaust muffler for added operator comfort.
- An optional patented universal swivel air inlet joint for the best maneuverability of the tool.
- Bumper
- Air inlet tube
- Valve seat
- Air actuating valve
- Auxiliary damping spring
- Ergonomic handle with rubber sleeve
Specification:
- Chisel Shank Opening: 0.401(10.2) inch(mm)
- Bore Diameter: 3/4(19) inch(mm)
- Stroke Length: 1-31/32(50) inch(mm)
- Blows Per Minute: 4000 bpm
- Avg. Air Cons.: 15.2(430) cfm(l/min)
- Net Weight: 3.4(1.5) lbs(kgs)
- Air Inlet Size: 1/4 PT/NPT
- Operating Air Pressure: 90(6.2) PSI(bar)
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 2.5 m/s2
ZAH-392K
Accessories
- Shock-Reduced Air Hammer X 1
- 192913 Retainer Spring
- CH641RL 7″ Single End Cutter X 1
CH645RL 7″ Cut Off Chisel X 1
CH649RL 7″ Rivet Cutter Chisel X 1
CH672RL 7″ Special Panel Cutter X 1
CH627RL 7″ Shear Chisel X 1
| Model | Chisel Shank Opening inch(mm) | Bore Diameter inch(mm) | Stroke Length inch(mm) | Blow Per Minch bpm | Avg. Air Cons cfm(l/min) | Net Weight lbs(kgs) | Minch Hose Size inch(mm) | Vibration m/s² |
| ZAH-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-392H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-393 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-393H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-394 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-394H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-592 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-592H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-593 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-593H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-594 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-594H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZNS-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZCH-394B | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 6(170) | 4.6(2.1) | 3/8(10) | 5.3 |
*(H)-Chisel Shank Opening 0.410″(10.4mm) *Operating Air Pressure: 90psi/6.2bar. *Air Inlet Size: 1/4″ PT/NPT
