ZAH-592 – Shock Reduced Air Hammer
Professional Pneumatic Hammer with Advanced Vibration Reduction
The ZAH-592 Shock Reduced Air Hammer is engineered for industrial and heavy-duty applications, offering powerful impact performance with enhanced shock reduction technology. This tool is ideal for construction, automotive, and metalworking professionals who demand efficiency, precision, and safety in every operation.
Key Features
Shock Reduction Technology – Reduces vibration and recoil for operator comfort and fatigue prevention.
High Impact Performance – Delivers consistent and powerful hammering force for rapid material removal.
Durable Construction – Built with industrial-grade materials to withstand harsh work environments.
Ergonomic Design – Comfortable grip ensures better handling and control, even during extended use.
Versatile Chisel Compatibility – Supports a variety of chisels and attachments for multiple applications.
Optimized Pneumatic System – Provides smooth, reliable operation and long-term durability.
Technical Specifications
Model: ZAH-592
Type: Shock Reduced Air Hammer
Power Source: Compressed air
Hammering Frequency: High-speed pneumatic impact
Recommended Use: Chipping, cutting, surface preparation, and demolition tasks
Benefits
Reduced Operator Fatigue – Shock reduction minimizes vibration exposure, thereby reducing fatigue.
Enhanced Efficiency – High-impact force allows faster material removal.
Long-Term Durability – Engineered to withstand continuous heavy-duty use.
Comfortable Operation – The ergonomic design ensures a better grip and improved handling.
Wide Application Range – Suitable for automotive, construction, industrial maintenance, and more.
Applications
Construction & Demolition: Breaking concrete, masonry, and heavy structures.
Automotive & Body Work: Removing welds, cutting panels, and chipping rust.
Industrial Maintenance: Surface preparation, cleaning, and fabrication.
Metalworking & Fabrication: Chiseling, shaping, and trimming metals.
Why Choose the ZAH-592?
The ZAH-592 Shock Reduced Air Hammer combines high performance with safety, making it an essential tool for professionals seeking reliability, comfort, and productivity. Its shock-reduction system ensures long-term operator comfort while delivering consistent, high-impact power for a variety of demanding tasks.
Features
- Designed with the following patents to ensure the best shock reduction and operator’s comfort.
1) Portable pneumatic tool assembled with module units.
2) Suspension vibration-reducing means for portable pneumatic tools. - Alloy steel-made impact parts are heat-treated for durability.
- Quick-Change Retainer for Simple Accessory Changes.
- Ergonomic handle with a rubber-made exhaust muffler for added operator comfort.
- An optional patented universal swivel air inlet joint for the best maneuverability of the tool.
- Bumper
- Air inlet tube
- Valve seat
- Air actuating valve
- Auxiliary damping spring
- Ergonomic handle with rubber sleeve
Specification:
- Chisel Shank Opening: 0.401(10.2) inch(mm)
- Bore Diameter: 3/4(19) inch(mm)
- Stroke Length: 1-31/32(50) inch(mm)
- Blows Per Minute: 4000 bpm
- Avg. Air Cons.: 15.2(430) cfm(l/min)
- Net Weight: 3.4(1.5) lbs(kgs)
- Air Inlet Size: 1/4 PT/NPT
- Operating Air Pressure: 90(6.2) PSI(bar)
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 2.5 m/s2
ZAH-592K
Accessories
- Shock-Reduced Air Hammer X 1
- 192913 Retainer Spring
- CH641RL 7″ Single End Cutter X 1
CH645RL 7″ Cut Off Chisel X 1
CH649RL 7″ Rivet Cutter Chisel X 1
CH672RL 7″ Special Panel Cutter X 1
CH627RL 7″ Shear Chisel X 1
| Model | Chisel Shank Opening inch(mm) | Bore Diameter inch(mm) | Stroke Length inch(mm) | Blow Per Minch bpm | Avg. Air Cons cfm(l/min) | Net Weight lbs(kgs) | Minch Hose Size inch(mm) | Vibration m/s² |

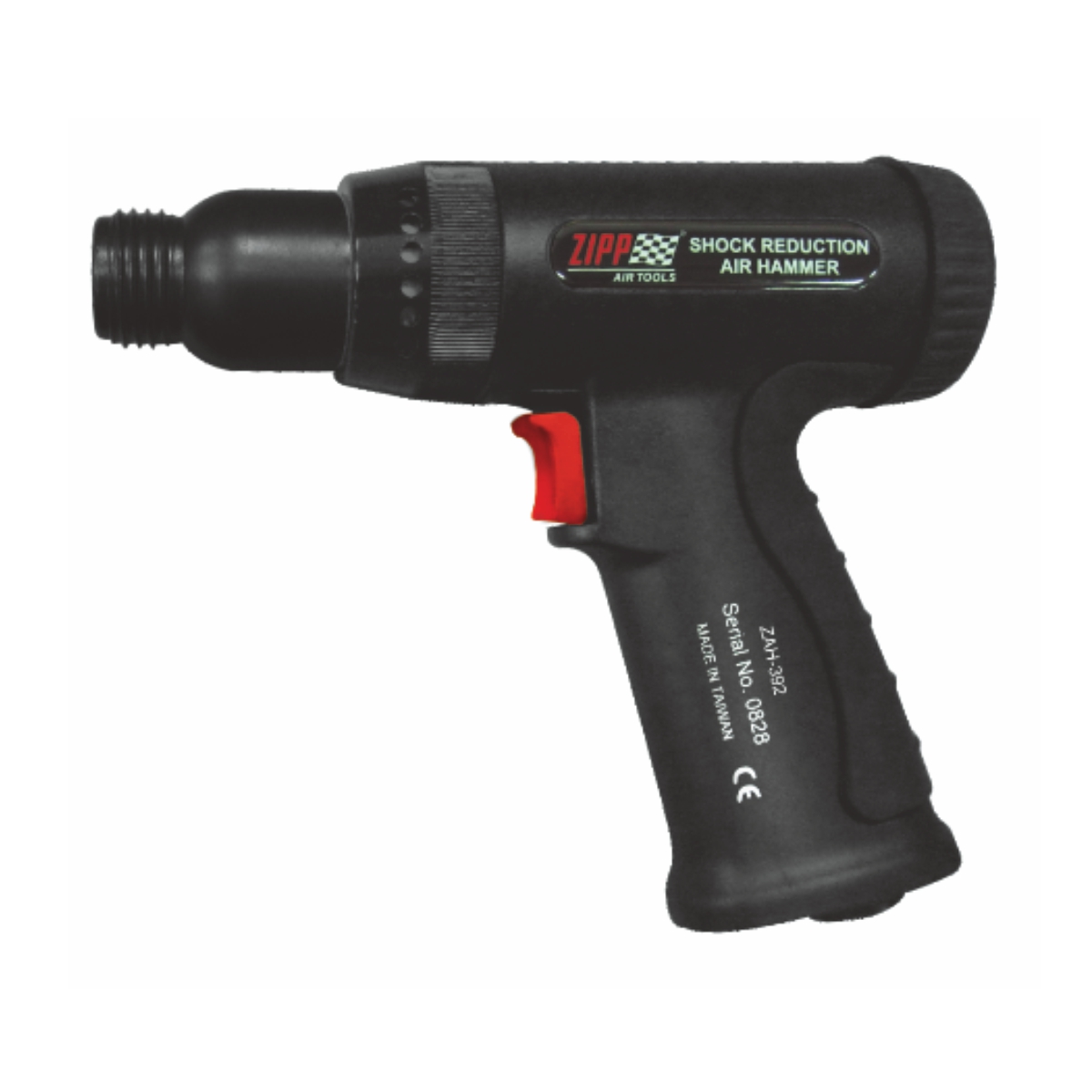

| ZAH-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-392H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-393 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-393H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-394 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-394H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-592 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZAH-592H | 0.410(10.4) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |

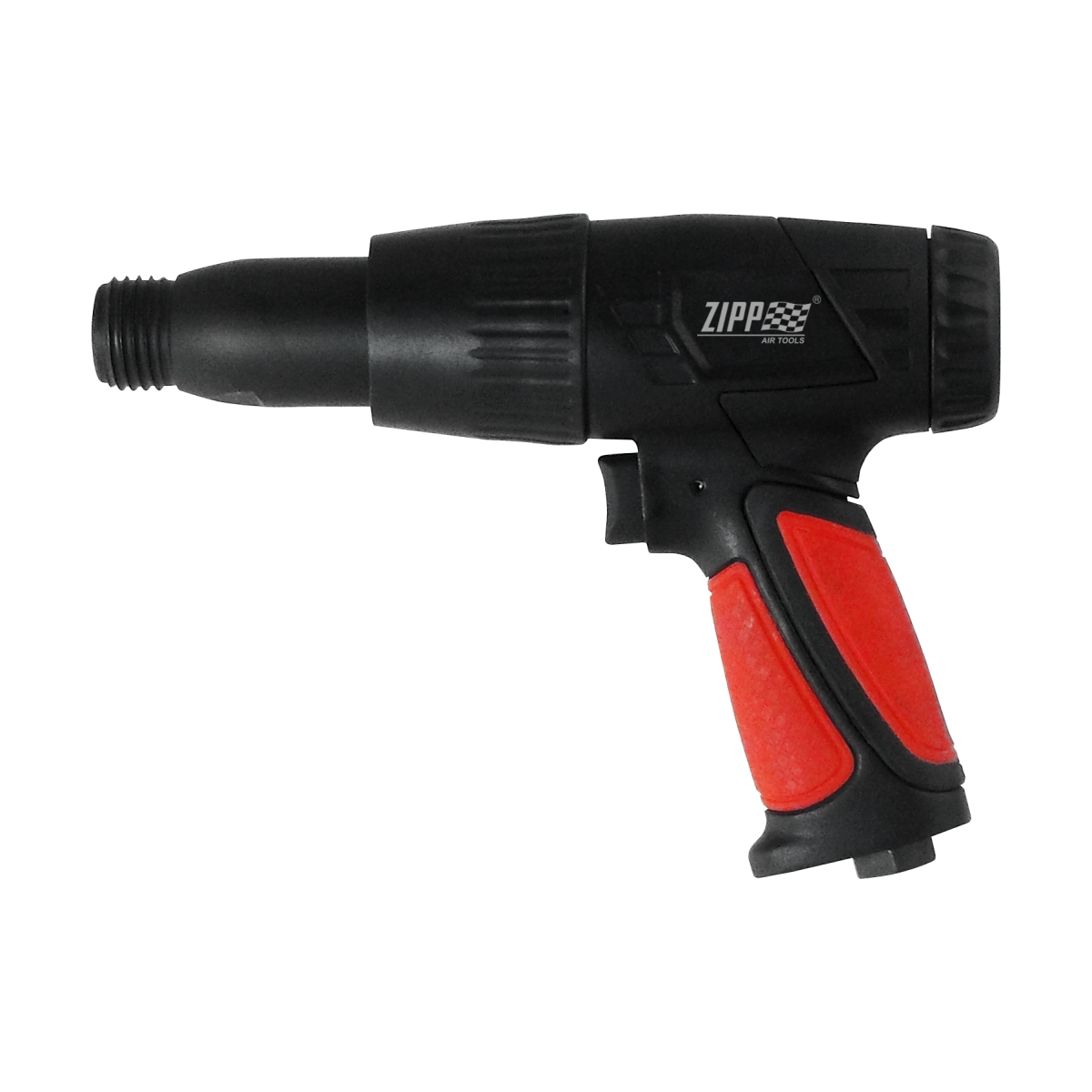

| ZAH-593 | 0.401(10.2) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-593H | 0.410(10.4) | 3/4(19) | 2-5/8(66) | 3000 | 4.95(140) | 4(1.8) | 3/8(10) | 10 |
| ZAH-594 | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZAH-594H | 0.410(10.4) | 3/4(19) | 3-1/2(89) | 2100 | 5.65(160) | 4.6(2.1) | 3/8(10) | 5.5 |
| ZNS-392 | 0.401(10.2) | 3/4(19) | 1-31/32(50) | 4000 | 15.2(430) | 3.4(1.5) | 3/8(10) | 2.5 |
| ZCH-394B | 0.401(10.2) | 3/4(19) | 3-1/2(89) | 2100 | 6(170) | 4.6(2.1) | 3/8(10) | 5.3 |
*(H)-Chisel Shank Opening 0.410″(10.4mm) *Operating Air Pressure: 90psi/6.2bar. *Air Inlet Size: 1/4″ PT/NPT
