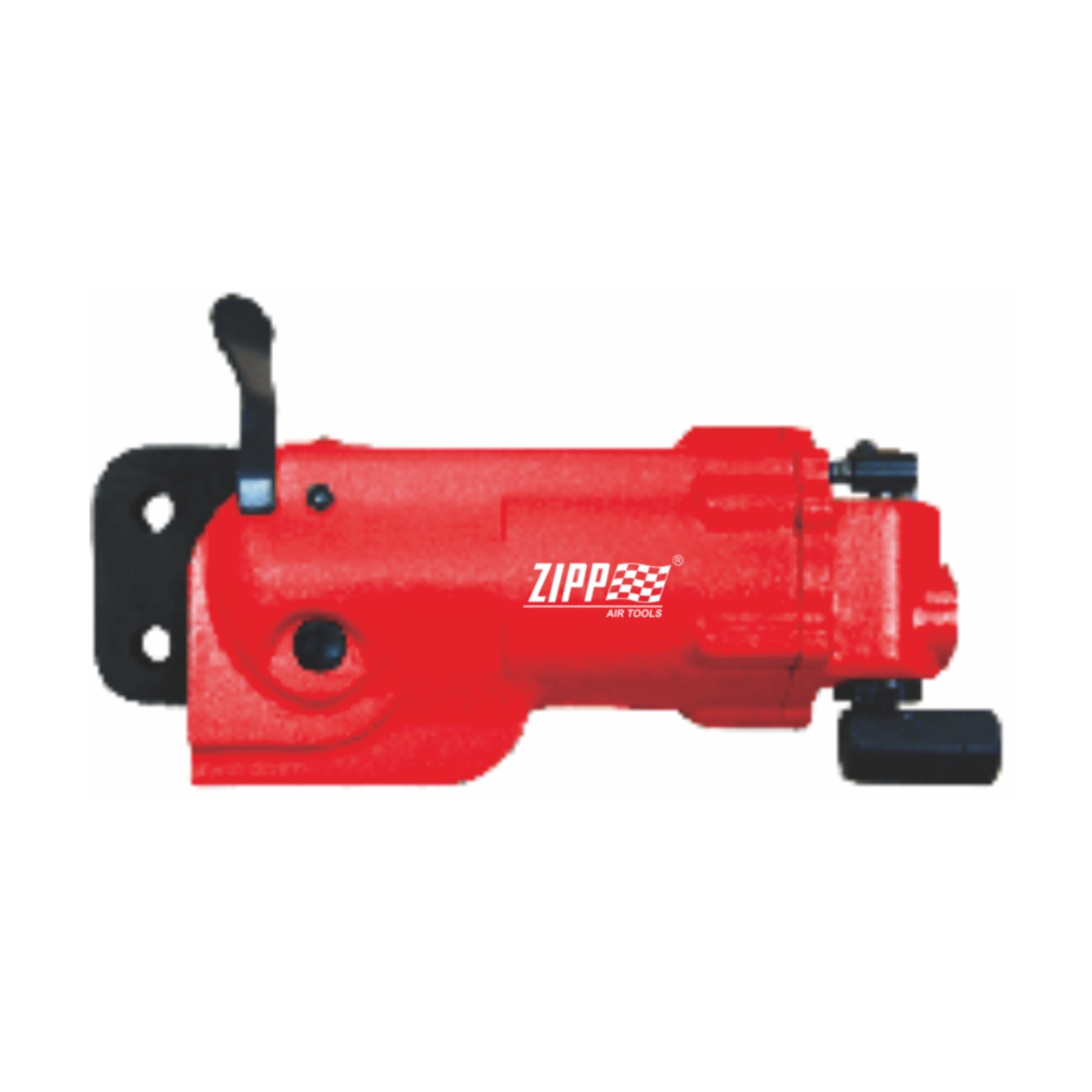

ZCR030A225 Compression Rivet Squeezer – Single Cylinder
The ZCR030A225 Compression Rivet Squeezer with a single cylinder is a precision pneumatic fastening tool designed for industrial, automotive, aerospace, and maintenance applications. Engineered for consistent and controlled compression, this squeezer ensures reliable installation of rivets, reducing fastener failure and improving overall assembly quality. The single cylinder system provides smooth and efficient riveting, making it ideal for medium-duty applications where precision and reliability are required. Its ergonomic design and lightweight construction enhance operator comfort and usability during repetitive tasks.
Key Features
Single Cylinder Technology – Delivers precise and consistent force for reliable rivet installation.
Compression Rivet Application – Suitable for professional riveting tasks.
Pneumatic Operation – Ensures smooth and powerful performance.
Ergonomic & Lightweight Design – Reduces operator fatigue during extended use.
Durable Construction – Built for industrial and professional environments.
Precise Riveting Control – Maintains uniform compression across fasteners.
Benefits
Reliable Rivet Installation – Consistent force ensures secure fastening every time.
Efficient Operation – Single cylinder system provides smooth and accurate riveting.
Durable & Long-Lasting – High-quality construction withstands daily industrial use.
Operator Comfort – Lightweight and ergonomic design reduces strain during long tasks.
Versatile Application – Compatible with a range of rivet sizes and materials.
Applications
Automotive Assembly – Riveting body panels, structural components, and chassis parts.
Aerospace Manufacturing – Precise riveting for aircraft and aerospace components.
Industrial Fabrication – Fastening in machinery and structural frameworks.
Construction & Metalworking – Riveting metal sheets and plates.
Maintenance & Repair – Efficient rivet installation for production and on-site repairs.
Why Choose the ZCR030A225 Compression Rivet Squeezer – Single Cylinder?
The ZCR030A225 is designed for professionals who require precision, reliability, and ease of use in rivet installation. Its single cylinder technology, ergonomic design, and durable construction ensure consistent, high-quality fastening for industrial, automotive, aerospace, and maintenance applications. Ideal for medium-duty repetitive riveting, this tool provides a cost-effective and professional solution for secure and efficient assembly.
“Alligator” Yoke Riveters
Features
- It is used for squeezing various sizes and types of rivets.
- Decisive squeeze action is easily controlled to provide uniformity and accuracy of work.
- Ideally, it is used for dimpling, punching, and pressing.
- An extra powerful, portable tandem cylinder with double the compressive force for a large riveting capacity is also available.
Specification:
- Rivet Capacity Diameter: 3/32(2.4) Alum
- Rivet Capacity Diameter: 1/16(1.6) Steel
- Standard Yoke Dimensions: 2-1/4(57.1) Reach
- Max Force: 2200(9.79) lb(KN)
- Set Holder: 7/8(11.1) Max Travel
- Set Holder: 0.094(2.4) Stroke at Max Power
- Overall Length: 10-1/4(260) inch(mm)
- Weight: 4.25(1.9) lbs(kgs)
| Model | Reach inch(mm) | Gap inch(mm) | Closed Height inch(mm) |
| A15 | 1.5(38.1) | 0.89(22.6) | 0.875(22.2) |
| A225 | 2.25(57.2) | 0.89(22.6) | 0.875(22.2) |
| A30 | 3(76.2) | 0.89(22.6) | 0.875(22.2) |
| Model | Rivet Capacity Diameter | Standard Yoke Dimensions Reach | Max Force lb(kN) | Set Holder | Overall Length inch(mm) | Weight With Yoke lbs(kgs) | ||
| Alum | Steel | Max Travel | Stroke at Max Power | |||||
| ZCR030A15 | 1/8(3.2) | 3/32(2.4) | 1-1/2(38.1) | 3000(13.35) | 5/8(15.9) | 0.05(1.3) | 9-3/16(230) | 3.75(1.7) |
| ZCR030A225 | 3/32(2.4) | 1/16(1.6) | 2-1/4(57.1) | 2200(9.79) | 7/8(22.2) | 0.094(2.4) | 10-1/4(260) | 4.25(1.9) |
| ZCR030A30 | 3/32(2.4) | 1/16(1.6) | 3(76.2) | 1800(8) | 1-1/4(31.8) | 0.05(1.3) | 10-3/4(270) | 4.5(2.1) |
| ZCR060A15 | 3/16(4.8) | 5/32(4) | 1-1/2(38.1) | 6000(26.7) | 5/8(15.9) | 0.05(1.3) | 11-3/16(280) | 4.75(2.2) |
| ZCR060A225 | 5/32(4.0) | 1/8(3.2) | 2-1/4(57.1) | 4300(19.1) | 7/8(22.2) | 0.094(2.4) | 12-29/32(328) | 5.25(2.4) |
| ZCR060A30 | 1/8(3.2) | 3/32(2.4) | 3(76.2) | 3400(15.1) | 1-1/4(31.8) | 0.05(1.3) | 13-1/2(340) | 5.5(2.5) |
