ZLSW Series Hydraulic Vertical Lifting Wedge

ZLSW Series

The ZLSW Series Hydraulic Vertical Lifting Wedge is a specialized lifting tool for vertical lifting and precise positioning of heavy loads in various industrial applications. This innovative wedge utilizes hydraulic technology to provide exceptional lifting capabilities, making it ideal for construction, maintenance, and heavy equipment industries.

Key Features

• Hydraulic Power: Equipped with a hydraulic mechanism that allows for efficient lifting of heavy loads with minimal manual effort. This feature enhances safety and reduces the risk of operator fatigue during prolonged use.
• Vertical Lifting Design: Specifically designed for vertical lifting applications, ensuring optimal performance when positioning heavy materials or machinery.
• Robust Construction: Made from high-strength materials that provide durability and stability, ensuring reliable performance even under the most demanding conditions.
• Adjustable Height: The hydraulic system allows for adjustable lifting heights, providing flexibility for various applications and enabling precise load positioning.
• Compact Size: Its compact design allows easy handling and maneuverability, making it suitable for use in confined spaces or tight work areas.
• Safety Features: It incorporates safety mechanisms to prevent overextension and ensure secure lifting operations, minimizing the risk of accidents during use.
• Versatile Applications: Suitable for various lifting tasks, including machinery installation, construction projects, and maintenance operations.

Applications

• Construction: Ideal for lifting heavy construction materials, such as steel beams or concrete blocks, during building projects.
• Heavy Equipment Maintenance: Perfect for positioning and securing heavy machinery for maintenance and repair tasks.
• Industrial Manufacturing: Used in manufacturing facilities to precisely position heavy components during assembly.
• Shipping and Logistics: This is useful in shipping yards and warehouses for lifting and moving heavy loads, improving efficiency in material handling operations.

Benefits

• Enhanced Efficiency: The hydraulic lifting capability significantly reduces the time and effort required to lift heavy loads, improving overall productivity.
• User-Friendly Operation: Designed for ease of use, allowing operators to lift and position loads with minimal training and experience.
• Increased Safety: The built-in safety features help prevent accidents and injuries, promoting a safer working environment.
• Durable Performance: Engineered to withstand the rigors of industrial use, ensuring longevity and reliability in challenging conditions.
• Versatile Usage: Its adaptability to various lifting tasks makes it an essential tool for contractors, maintenance personnel, and industrial workers.

The ZLSW Series Hydraulic Vertical Lifting Wedge is a powerful and efficient lifting solution that enhances productivity and safety in various industrial applications. Its hydraulic capabilities, robust construction, and user-friendly design make it an invaluable tool for anyone involved in heavy lifting and positioning tasks.

• Maximum Spread Force: 16(157) ton(kN)

• Min. Clearance/ Max. Lift Ht.1): 9.9/51.3-69.11) mm

• Maximum Operating Pressure: 700 bar
  1)Using Stepped block ZSWRFSB to increase
  wedge lifting height 30mm.

Hydraulic Vertical Lifting Wedge

• Require 0.39″ (9.9mm) access gap.

• Lifting force 16 tons at 700 bar hydraulic pressure.
• Automatic mechanical retraction (single-acting spring return).

• Securely raises or lowers 16 tons with no slippage.

• Lifting wedge ZLSW-16 includes safety block ZSLW-C1-16.

• Use in tandem to lift 32 tons or 64 tons.

• 21.1mm of vertical lift from each step (maximum lift to 69.1mm with optional ZSLW-C2-16 stepped block).

• Each step can spread under full load.

• Unique interlocking wedge design, no first step bending, and risk of slipping out.

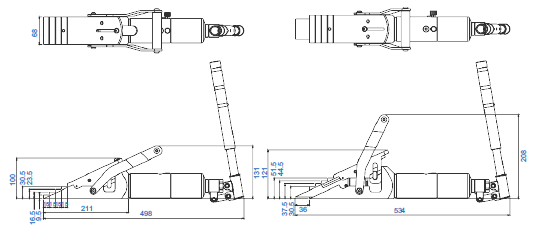

ZLSW-16

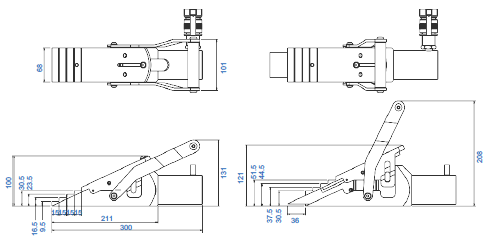

ZLSW-161

Control Manifolds

• Control Manifold to control two or four lifting wedges simultaneously.
