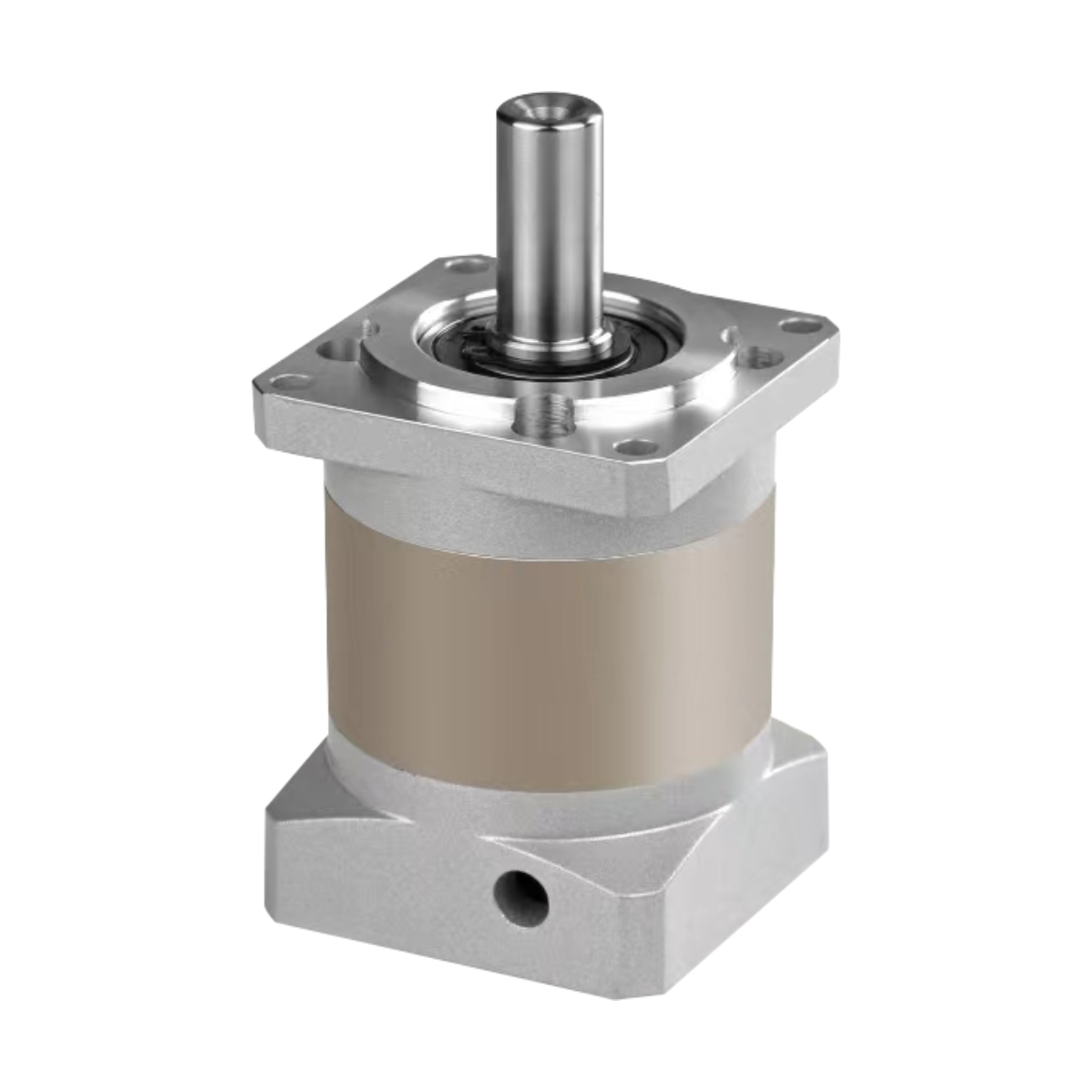

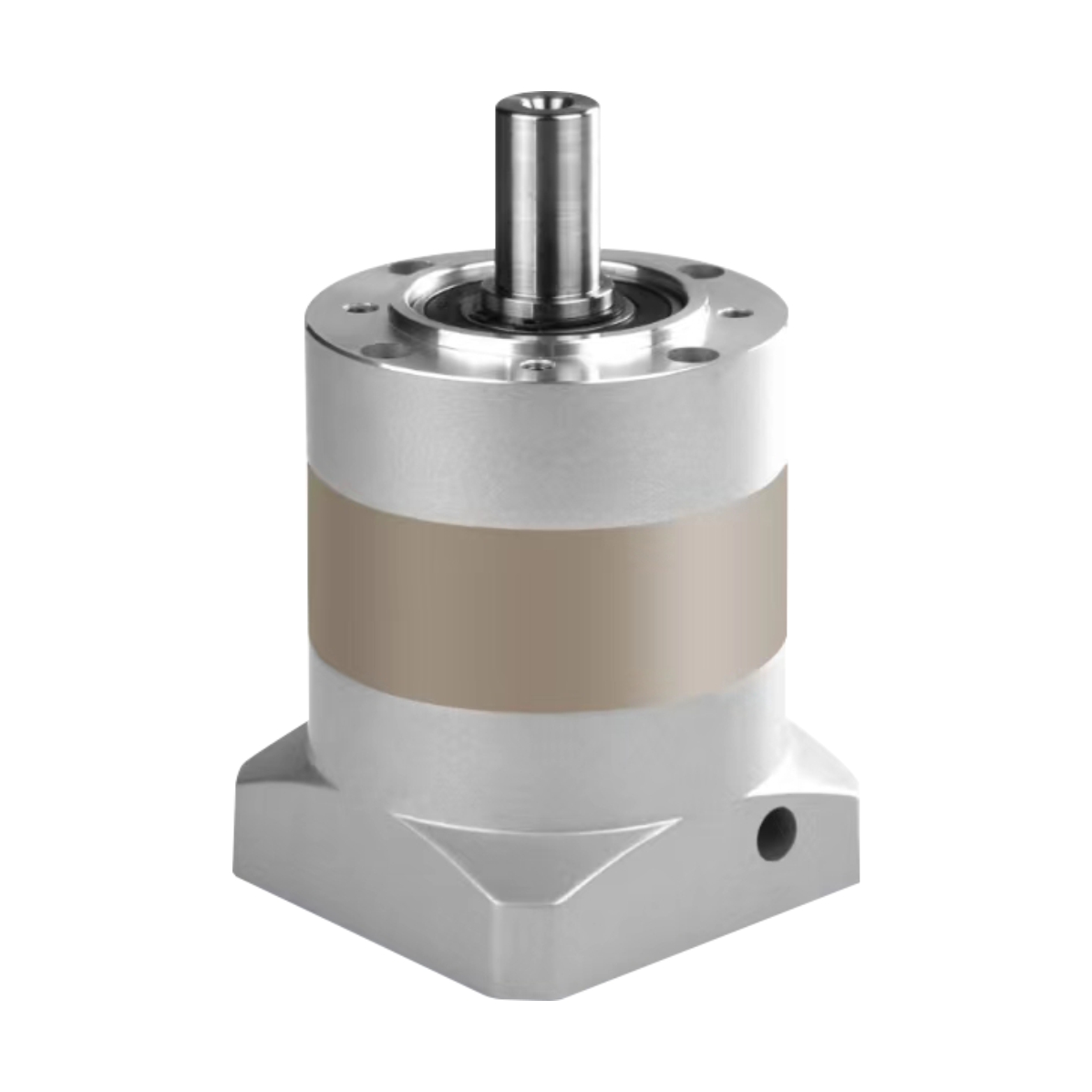

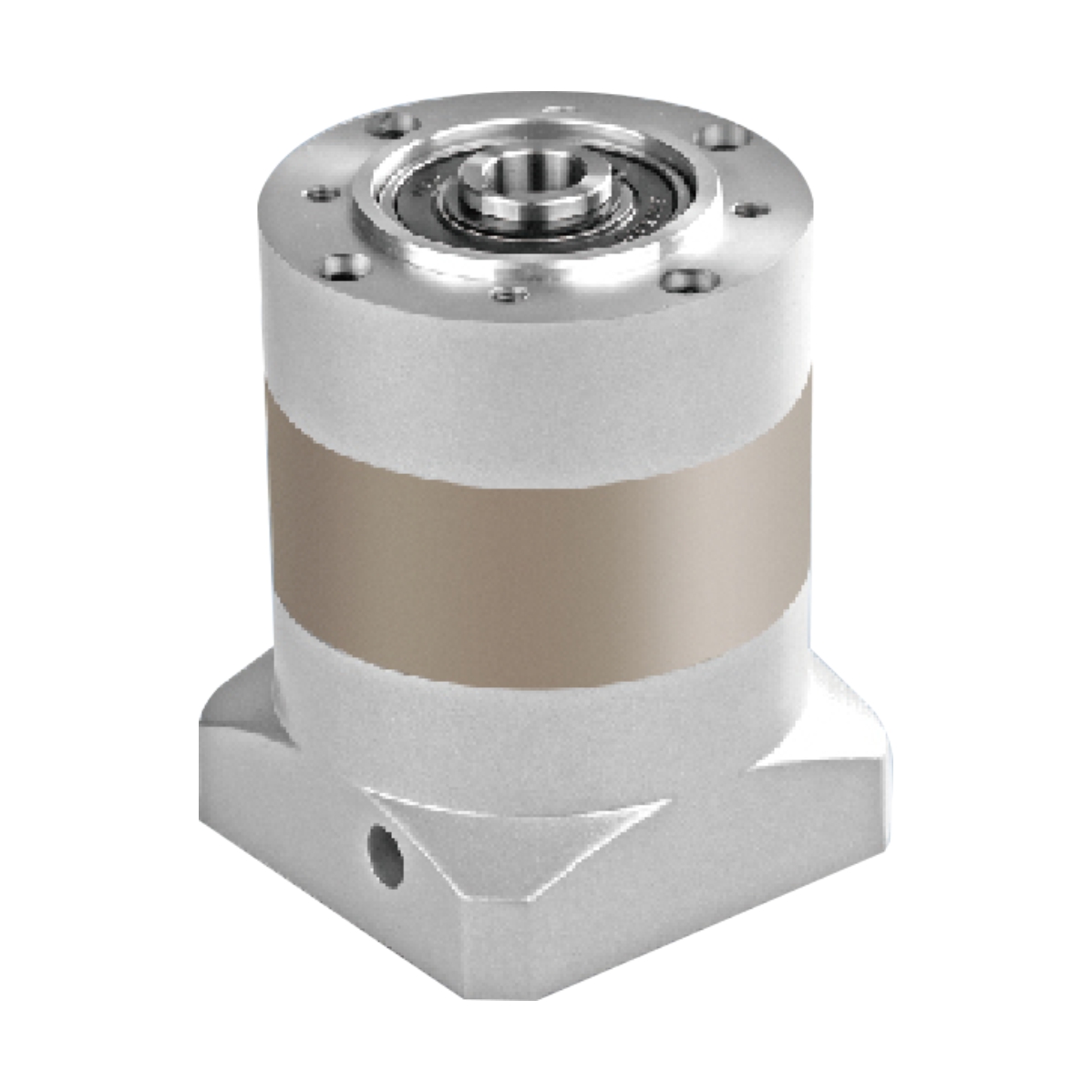

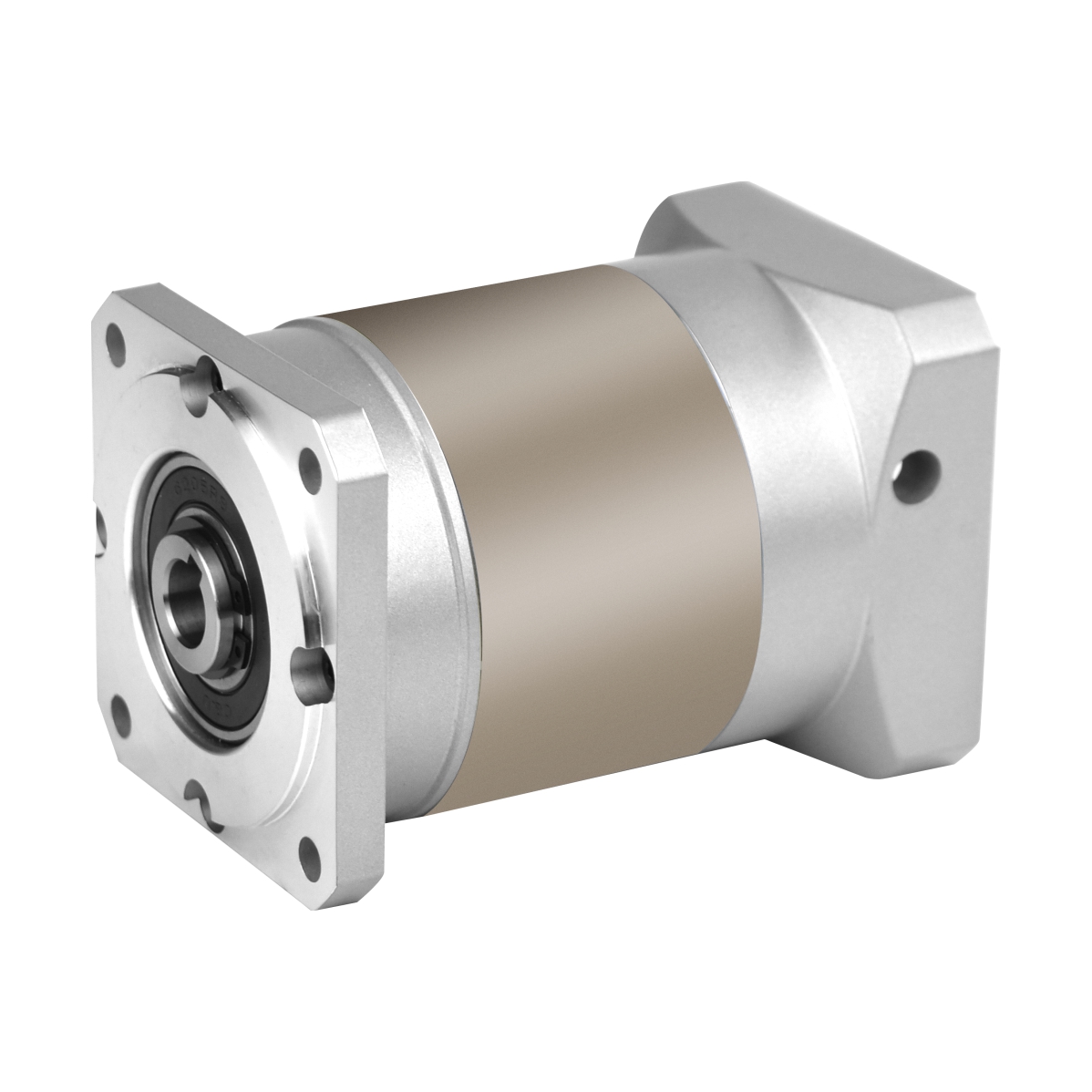

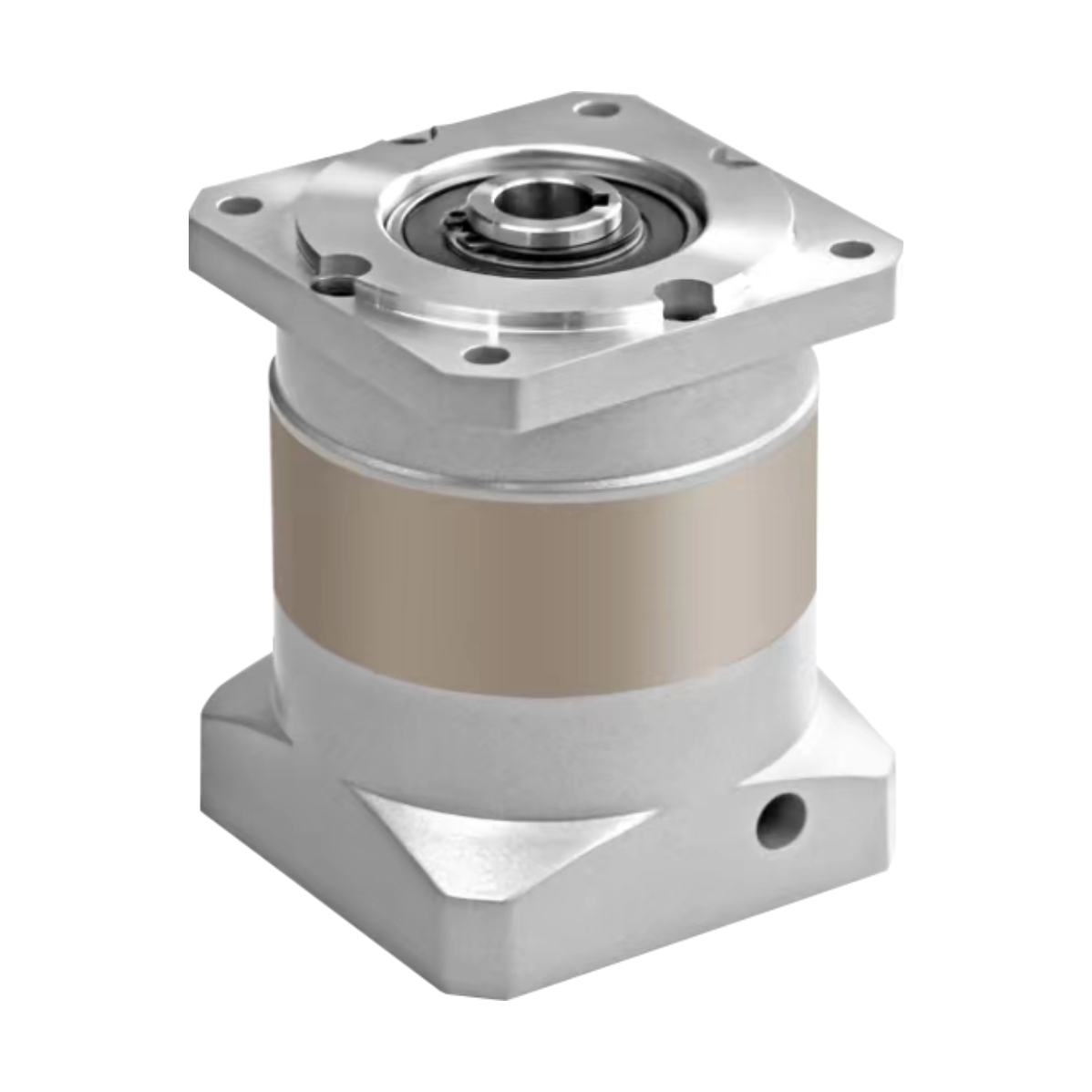

ZP Series spur planetary gearbox
The ZP Series spur planetary gearbox delivers high torque transmission and compact design for a wide range of industrial applications. This reducer uses a spur-gear planetary structure that provides excellent efficiency, smooth rotation, and stable output while maintaining a lightweight, space-saving form. Its precision-machined gears ensure low backlash, consistent performance, and accurate motion control, which is critical for automation systems, robotics, packaging machinery, conveyors, and material handling equipment. The robust housing and high-quality components offer long service life and dependable operation under continuous load, helping reduce maintenance and downtime. The modular design supports multiple ratios and mounting configurations, allowing easy integration into new equipment or existing systems. ZP Series spur planetary gear reducer is ideal for manufacturers and system integrators seeking a cost-effective, reliable, and high-performance gearbox solution that enhances productivity, improves motion control accuracy, and supports modern smart manufacturing requirements.
Key Features
Economical Spur Gear Design – Provides a cost-effective solution for applications that require reliable performance with moderate precision.
High Efficiency Transmission – Achieves up to 95% efficiency per stage with minimal power loss.
Compact and Lightweight Structure – Planetary configuration offers a high torque-to-size ratio, saving installation space.
Durable Gear Construction – Precision-machined alloy steel gears are carburized and hardened for extended service life.
Smooth Operation and Low Noise – Optimized tooth profile and gear alignment reduce vibration and operating noise.
Modular Input Interface – Compatible with most standard servo, stepper, and brushless DC motors.
Multiple Reduction Ratios – Wide range of gear ratios available to meet specific speed and torque requirements.
Maintenance-Free Design – Factory-sealed lubrication eliminates the need for frequent servicing.
Universal Mounting Orientation – Allows installation in any direction for flexible mechanical integration.
Cost-Optimized Construction – Designed to deliver consistent performance while minimizing overall system cost.
Applications
The ZP Series Spur Planetary Gearbox is suitable for a broad range of industrial and automation applications, including:
CNC and machine tools – precision feed drives and rotary axes
Automation equipment and pick-and-place systems – reliable motion control in cost-sensitive systems
Conveyor and packaging machinery – compact drive solutions with stable torque output
Printing, textile, and labeling machines – quiet and efficient motion transmission
Robotics and assembly systems – compact and lightweight gearbox for controlled motion
Testing and laboratory equipment – smooth, precise rotation under varying load conditions
Performance Advantages
High Torque Density – The planetary configuration delivers strong torque output within a compact envelope.
Low Noise and Smooth Motion – Spur gear optimization ensures quiet and stable operation for continuous use.
Reliable and Efficient Power Transfer – High mechanical efficiency reduces energy consumption.
Durable and Long-Lasting – Heat-treated gears and precision bearings extend operational life.
Easy Integration – Modular input flange design simplifies installation to multiple motor brands.
Economical Alternative – Cost-effective planetary solution for moderate-precision automation needs.
Technical Benefits
Gear Type: Spur gear planetary reduction
Reduction Ratios: Wide range available (commonly 3:1 to 100:1)
Efficiency: Up to 95% per stage
Backlash: Standard range ≤ 8 – ≤ 12 arcmin
Torque Capacity: Medium torque for light to moderate industrial applications
Housing Material: Precision-machined aluminum alloy for lightweight strength
Gear Material: Hardened alloy steel (carburized and ground)
Bearing System: High-load precision bearings for axial and radial support
Lubrication: Factory-sealed grease for maintenance-free operation
Mounting: Any orientation (horizontal, vertical, or inverted)
- Motor Compatibility: Servo, stepper, and brushless DC motor interfaces
Why Choose ZP Series Planetary Gearbox
The ZP Series Spur Planetary Gearbox offers an ideal solution for engineers and machine builders seeking affordable precision, compact design, and reliable torque performance. Its spur-gear planetary architecture ensures smooth, efficient motion while keeping costs low — making it an excellent fit for general automation, motion control, and machinery drive systems. Developed under the engineering philosophy of Power, Precision, and Productivity, the ZP Series delivers outstanding performance and long-term reliability at an economical price point. Whether for servo-driven automation or general-purpose industrial machinery, the ZP Series provides cost-effective, dependable power transmission for modern manufacturing environments.
