ZSPE-3000 Hydraulic Electric Pump
The ZSPE-3000 is a high-performance hydraulic electric pump built for demanding applications requiring consistent high-pressure output. Designed for use with torque wrenches, bolt tensioners, and hydraulic cylinders, it ensures precision, efficiency, and durability across various industrial operations. With its powerful motor, advanced control features, and high-pressure capability, this pump is ideal for continuous and heavy-duty tasks in the construction, energy, marine, and manufacturing sectors.
Key Features
- High Pressure Output: Operates up to 700 bar (10,000 psi), ideal for high-torque applications and precise hydraulic operations.
- Dual-Stage Pumping System: This system delivers fast flow rates at low pressure for quick positioning and shifts to high-pressure mode for maximum force when needed.
- Digital Control Interface: Equipped with a clear display and intuitive controls, allowing users to monitor pressure and adjust settings accurately.
- Powerful Electric Motor: Designed for continuous operation with low noise and minimal energy consumption.
- Thermal Overload Protection: Automatically shuts down the pump to prevent overheating, ensuring safe operation during extended use.
- Large Oil Reservoir: Supports long operational cycles without frequent refilling, improving efficiency and reducing downtime.
- Remote Operation Compatibility: This can be controlled remotely using wired or wireless interfaces, enabling safe and easy operation in confined or hazardous environments.
- Integrated Safety Systems: This system features a safety relief valve to protect against overpressurization, ensuring equipment longevity and user safety.
Applications
- Construction & Heavy Industry: Ideal for bolt tightening, pre-tensioning, and flange assembly on large infrastructure projects.
- Oil & Gas Operations: Used for pipeline maintenance, valve operations, and high-pressure bolting.
- Power Generation & Utilities: Essential for turbine and transformer assembly and infrastructure maintenance.
- Shipbuilding & Marine Maintenance: Suitable for high-pressure operations in ship repair, dry docks, and vessel assembly.
- Mining & Heavy Equipment: Powers hydraulic tools for the maintenance of trucks, loaders, and drilling rigs.
Benefits
- Enhanced Efficiency: The dual-stage system reduces the time spent on low-pressure operations, improving productivity.
- User-Friendly Operation: The digital interface ensures quick setup and real-time monitoring.
- Portability and Flexibility: Despite its powerful motor, the pump is designed to be compact and easy to transport to job sites.
- Minimal Downtime: The large reservoir and thermal protection enable continuous operation without interruptions.
- Safe and Reliable: Built-in safety valves and remote operation options ensure safe handling in critical environments.
- Low Maintenance: The robust design and high-quality components require minimal maintenance, resulting in lower long-term operational costs.
The ZSPE-3000 Hydraulic Electric Pump combines performance, durability, and precision. Its high-pressure capability and advanced control features make it ideal for professionals seeking reliable hydraulic power for demanding industrial applications.
- Reservoir Capacity: 3000-6000c.c
- Flow at rated pressure: 4-0.4 L
- Motor Size: 0.37kW (0.5 hp)
- Maximum Operating Pressure:700 bar
Hydraulic Electric Pump
- It requires less energy, is simple, and is easy to operate.
- Suitable for any industrial application.
- Handle and casing built together.
- It is equipped with a 10ft remote line.
- Carbon brush motor, working frequently.
Custom build your Electric Pump.

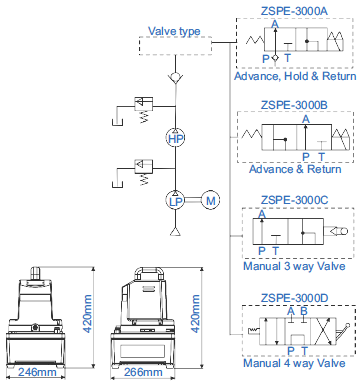

- Valve
A. 3way/ 2position built-in Solenoid Valve: Advance Hold Return
B. Remote Release Pressure: Advance Return (Ideal for punching, crimping and cutting)
C. 3way/ 2position Manual Valve: Advance Hold Manual return
D. 4way/ 3position Manual Valve: Advance Hold Manual return - Voltage
1= 115V/7.5A
2= 230V/2.8A - Hz
5= 50Hz I 60Hz - Phase
1= 1ph - Reservoir
No word= 3000c.c PU reservoir
LT= 8000c.c Iron reservoir
Users can order suitable reservoirs. - fitting
PJ= Pressure adjust switch
PB= Pressure adjuster
G= Pressure gauge
Control Valve
- A pump with a 3-way solenoid (built-in) or manual valve must power a single-acting cylinder.
- Compare Model: ZSPE-3000APS (solenoid) or ZSPE-3000CPS (manual)
- A pump with a 4-way valve must power a double-acting cylinder.
- Compare Model: ZSPE-3000D
LT= Iron reservoir
G= Pressure Gauge
PJ= Pressure Adjust Switch
Part No.: ZSPG-800-CE80
PB= Pressure Adjuster Switch
Part No.: ZSPS-7A-700
| Model Number | Motor | Max. Pressure | Pressure Rating | Output flow rate | dB(A) at Idle and 700bar | Weight include oil | Dimension | ||
| 1st stage | 2nd stage | 1st stage | 2nd stage | ||||||
| kW(hp) | psi(bar) | psi(bar) | L(min) | kg | mm | ||||
| ZSPE-3000 | 0.37(0.5) | 10000(700) | 200(14) | 10000(700) | 4 | 0.4 | 85-90 | 16 | 250*270*400 |
| ZSPE-3000LT | 0.37(0.5) | 10000(700) | 200(14) | 10000(700) | 4 | 0.4 | 85-90 | 24 | 300*350*460 |
