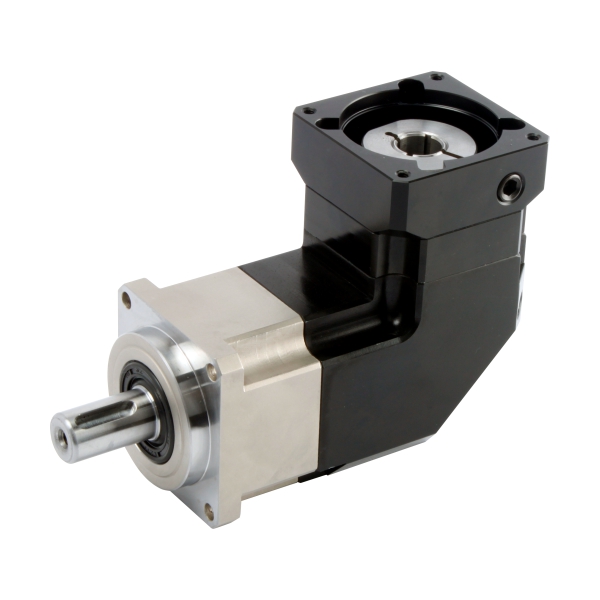

ZSR Right Angle Gearbox
The ZSR Right Angle Gearbox is a high-performance, compact transmission solution designed for efficient power transfer, torque multiplication, and space-saving mechanical integration. Engineered under precision manufacturing standards, the ZSR series delivers smooth, reliable, and quiet operation for a wide range of industrial and automation applications. Featuring a hardened spiral bevel gear system enclosed within a high-strength aluminum alloy or cast-iron housing, the ZSR Right Angle Gearbox ensures excellent load capacity, low backlash, and a long service life. Its robust design and versatile configuration options make it suitable for both high-speed and heavy-torque applications in modern machinery systems.
Key Features
High-Efficiency Spiral Bevel Gear Design – Provides smooth torque transmission, high load capacity, and low operating noise.
Compact 90° Output Configuration – Enables efficient power transfer in confined installation spaces.
Precision Machined Housing – Ensures alignment accuracy and thermal stability for long-term reliability.
Multiple Mounting Options – Available in various configurations to suit vertical, horizontal, or inverted installation.
High Torque Density – Optimized gear geometry provides a superior torque-to-size ratio.
Durable Material Construction – Features high-grade alloy steel gears with surface hardening and ground finishes for extended service life.
Maintenance-Friendly Design – Sealed lubrication system minimizes maintenance intervals and reduces downtime.
Low Backlash and High Accuracy – Ideal for motion control and automation systems requiring precision.
Broad Compatibility – Compatible with servo motors, stepper motors, and standard drive systems.
Applications
The ZSR Right Angle Gearbox is suitable for a wide range of industrial and automation applications, including:
Automation and robotics systems – space-optimized power transmission for articulated arms and motion axes
Packaging and conveyor equipment – efficient torque transfer in compact layouts
Machine tools and processing machinery – precise rotary motion under high torque loads
Printing and labeling equipment – smooth and quiet operation for continuous-duty applications
Material handling and lifting systems – durable gearing for load-bearing drive mechanisms
Agricultural and transport machinery – rugged construction for outdoor or heavy-duty performance
Performance Advantages
High Power Density – Delivers maximum torque in a compact, lightweight housing for space-constrained systems.
Superior Efficiency – Spiral bevel gearing minimizes friction losses, resulting in smoother and quieter operation.
Enhanced Durability – Heat-treated gear components ensure long service life under continuous use.
Precision and Stability – A low-backlash and rigid-shaft design ensures reliable, vibration-free power transmission.
Easy Integration – Modular mounting interfaces simplify installation and alignment with motor systems.
Low Maintenance Operation – Factory-sealed lubrication reduces service intervals and enhances system uptime.
Technical Benefits
Gear Type: Spiral bevel right-angle transmission
Gear Ratio: Available in multiple reduction ratios to suit torque and speed requirements
Torque Capacity: Designed for high-load applications across industrial machinery sectors
Efficiency: Up to 96% power transfer efficiency, depending on the ratio
Housing Material: High-strength aluminum alloy or cast iron for stability and heat dissipation
Shaft Configuration: Input/output options include solid, hollow, keyed, or spline-type shafts
Lubrication: Factory-sealed with long-life grease or oil bath system
Mounting Options: Flange mount, foot mount, or custom interface available
Noise Level: Low operational noise due to precision gear grinding and alignment
Operating Pressure/Temperature Range: Optimized for continuous-duty industrial operation
Why Choose ZSR Right Angle Gearbox
The ZSR Right Angle Gearbox embodies our commitment to performance, reliability, and precision engineering. With its efficient spiral bevel gear design, compact profile, and durable construction, it offers superior torque transmission for both dynamic and stationary power systems. Engineered for Power, Precision, and Productivity, the ZSR series delivers exceptional efficiency, quiet operation, and easy integration—making it the ideal choice for engineers and manufacturers seeking a high-quality right-angle gearbox solution for industrial automation, machinery, and energy-efficient drive applications.
