ZT0430 Speed Riveter

ZT0430 Speed Riveter

The ZT0430 Speed Riveter is a high-performance pneumatic riveting tool for fast, efficient, and reliable rivet installation in various applications. It is engineered for professionals who require precision and speed, making it an ideal choice for assembly lines, manufacturing, construction, and automotive repair, where rapid and consistent rivet installation is critical.

Key Features and Benefits

• High-Speed Operation: The ZT0430 Speed Riveter is built to install rivets quickly, significantly reducing assembly time compared to manual methods. This makes it ideal for high-volume production environments where speed and efficiency are paramount.
• Ergonomic Design: This speed riveter’s lightweight and ergonomic design reduces user fatigue during extended periods of use. The tool’s balanced construction ensures comfortable handling, essential for maintaining productivity over long shifts.
• Pneumatic Power: Powered by compressed air, the ZT0430 offers consistent and reliable performance. With minimal effort, the pneumatic system provides enough force to install rivets in various materials such as metal, plastic, and composites.
• Versatile Rivet Compatibility: The tool is compatible with various rivet sizes and materials, making it highly adaptable. It can be used for applications ranging from light-duty tasks to heavy-duty riveting jobs in industrial settings.
• Quick Rivet Loading: The tool features a quick rivet loading mechanism, enabling faster reloading during high-speed operations. This feature enhances productivity by minimizing downtime between riveting tasks.
• Durable Construction: Built with high-quality materials, the ZT0430 is designed for long-lasting performance in demanding environments. Its durable construction ensures it can withstand frequent use in industrial settings without compromising efficiency or accuracy.
• Precision Riveting: This riveter provides precise control over the rivet installation process, ensuring uniform results. Whether you’re working on delicate components or heavy-duty applications, the ZT0430 delivers consistent and professional results.

Applications

The ZT0430 Speed Riveter is suitable for a wide range of applications across different industries, including:

• Automotive Industry: This tool is perfect for installing rivets in vehicle assembly and repair, such as fastening panels, trim, and structural components. Its high-speed operation ensures that large-scale automotive assembly tasks are completed quickly and accurately.
• Aerospace: Ideal for riveting tasks in the aerospace industry, where precision and reliability are critical. The ZT0430 can handle the high-stress demands of aerospace manufacturing and maintenance, making it a valuable tool for aircraft assembly and repair.
• Manufacturing and Assembly Lines: Designed for high-volume production environments, the ZT0430 is perfect for assembly lines where large rivets must be installed quickly. Its speed and efficiency help reduce production times and improve overall productivity.
• Construction: This tool suits projects requiring fastening materials like sheet metal, siding, or framework. Its versatility makes it ideal for various construction-related tasks involving riveted joints.
• General Maintenance and Repair: The ZT0430 can be used for general maintenance tasks that require secure and reliable rivet fastening, such as repairing metal structures, installing equipment, or assembling machinery.

Why Choose the ZT0430 Speed Riveter?

The ZT0430 Speed Riveter offers an excellent combination of speed, power, and precision, making it the ideal tool for professionals needing a reliable and efficient riveting solution. Whether you’re working in automotive repair, manufacturing, aerospace, or construction, the ZT0430 provides the performance and durability required for high-speed riveting applications. With its ergonomic design and versatile compatibility, this tool ensures that rivet installation is fast and efficient, delivering superior results every time.

For any professional or business requiring a robust and high-speed riveting tool, the ZT0430 Speed Riveter is a top choice to enhance productivity and quality in various projects.

Features

• It can be used in areas with restricted operator space
• Available with an in-line handle and top or bottom hose configuration – optimized ergonomic performance for improved productivity
• Average cycle time of less than 2 seconds – increased productivity – up to 1500 fasteners per hour
• High capacity, magazine-fed fasteners – reduced component handling and subsequent spillage
• Lightweight construction and zero action recoil – reduced operator fatigue
• Long life, self-priming intensifier – consistent actuation and hence joint formation
• Long reach barrel – can be used in many complex access applications
• Low maintenance hand tool – productive time is maximized – no requirement for specialist maintenance training
• Robust & durable construction – suitable for most industrial environments

Specification:

• Air Supply Pressure Minimum/Maximum bar: 5~7
• Free Air Volume Required: 5.1(2.6) bar(liters)
• Stroke: 30 mm
• Pull Force: 874(389) lbf(kgf)
• Cycle Time Approximately: 1 second
• Noise Level Less than 70 dB (a)
• Net Weight: 2.38(1.08) Ibs(kgs)
• Vibration Less than m/s²: 2.7
• Overall Length: 475 mm
• Intensification Ratio: 30:1

Front Jaws

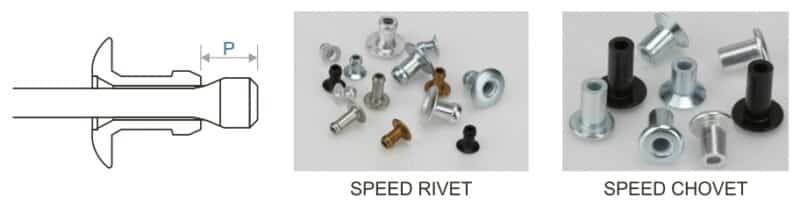

• Our speed rivet has a bulbed tail. It is foreshortened and expanded radially during installation. (Bulbed tail provides high vibration and good hole fill)
• We supply the speed rivet with many different materials and finishes to provide various options that suit your needs.
• Speed rivets are podded in a paper pod. So you can install 20 to 70 rivets with one easy loading.

Depending on the hole size and material of the application, you can select a suitable mandrel.

For the curved front jaws, the mandrels have to be bent by hand to match the curvature of the front jaws.

Mandrels for stainless steel speed rivets have a “V” cut on the end of the mandrel heads.
