ZT0618VS 3/16 inch Air Hydraulic Riveter

ZT0618VS 3/16 Inch Air Hydraulic Riveter (Vacuum Type)

The ZT0618VS 3/16 inch Air Hydraulic Riveter (Vacuum Type) is a compact, high-speed pneumatic riveting tool designed for clean, efficient, and precise fastening. Equipped with an integrated vacuum mandrel collection system, it delivers reliable riveting performance while maintaining a clean, debris-free workspace — ideal for high-volume assembly operations. Powered by our advanced air-hydraulic technology, the ZT0618VS provides consistent pulling force for 3/16-inch rivets in aluminum, steel, and stainless steel. Its lightweight design, ergonomic handling, and energy-efficient pneumatic system make it ideally suited for operators who demand precision, comfort, and durability in continuous production environments.

Key Features

• Vacuum Mandrel Collection System – Integrated suction automatically removes and collects spent mandrels for clean and safe operation.

• High-Performance Air-Hydraulic Drive – Provides stable and powerful pulling force for 3/16-inch rivets in aluminum, steel, and stainless steel.

• Lightweight Aluminum Construction – Compact, durable body designed for easy handling and long service life.

• Ergonomic Grip and Balanced Design – Reduces operator fatigue and vibration during extended operation.

• Fast Cycle Time – Quick trigger response and automatic mandrel ejection enhance production speed and efficiency.

• Optimized Pneumatic Circuit – Delivers maximum performance with low air consumption for cost-effective operation.

• Low-Maintenance Design – A simple internal structure enables quick servicing, cleaning, and seal replacement.

Applications

The ZT0618VS Vacuum-Type Air Hydraulic Riveter is ideal for precision riveting in industrial environments that require both performance and cleanliness, including:

• Automotive body and chassis assembly

• Electronics and appliance manufacturing

• Aerospace component fabrication and maintenance

• Sheet-metal, HVAC, and ducting production

• Metal furniture and light-structure assembly

• Industrial production lines requiring repetitive and traceable riveting

Performance Advantages

• Precise Control – Variable speed trigger ensures smooth, accurate riveting and prevents material deformation.

• Clean and Safe Operation – The Vacuum suction system automatically collects spent mandrels, improving workplace safety and efficiency.

• Productivity Optimization – Fast cycling and continuous suction reduce idle time, improving overall throughput.

• Operator Comfort – A lightweight, well-balanced design with low vibration enables more extended working periods without fatigue.

• Long-Term Durability – A robust hydraulic system and precision-engineered components ensure an extended service life.

• Cost Efficiency – Low air consumption and reduced maintenance minimize total operating costs.

Technical Benefits

• Compatible with 3/16-inch blind rivets in aluminum, steel, and stainless steel.

• Vacuum-assisted mandrel collection eliminates manual cleanup and enhances workflow.

• Variable speed adjustment enables flexible control for different rivet sizes and materials.

• Compact, low-weight body suitable for confined or overhead work environments.

• Designed for manual or semi-automated production systems in high-volume manufacturing.

Why Choose ZT0618VS

The ZT0618VS 3/16 inch Air Hydraulic Riveter (Vacuum Type) offers the ideal combination of compact design, controlled power, and clean operation. It enables operators to work faster, cleaner, and with greater accuracy — ensuring high-quality, repeatable results in every production cycle. With its vacuum mandrel collection system, variable speed control, and lightweight ergonomic construction, the ZT0618VS is the wise choice for manufacturers seeking to improve efficiency, safety, and product quality. It embodies ZIPPTOOL’s dedication to Power, Precision, and Productivity, making it an indispensable tool for modern industrial riveting applications.

Applications

Wherever fastening methods like welding, sheet metal screw, bolt, nut, washer, tubular, semitubular, and solid rivets and adhesives are applied, they can be substituted by blind rivets. All models above are suitable for setting standard blind rivets and structural blind rivets.

Features

• The easy-to-adjust head and nut are designed to achieve the most effective stroke and riveting speed.
• Aluminum alloy forged Hydraulic Section for greater strength and durability.
• 2-piece ultra-jaw made from high-grade tool steel and featuring special heat treatment to increase jaw life and reduce service costs.
• Mandrel Collection Bottle equipped with the patented vacuum collecting system for the cleanliness and safety of the work area.
• Ergonomically designed, the Trigger enhances comfort and reduces the operator’s fatigue.
• Lock Nut is designed for easy tool service.
• Side-mounted Swivel Air Inlet Joint for the tool’s maneuverability.
• The Rubber Boot is designed to protect the tool and work surface well.

Specification:

• Traction Power: 1320(596) Ibf(kgf)
• Stroke Length: 11/16(18) inch(mm)
• Net Weight: 3.41(1.55) lbs(kgs)
• Operating Air Pressure: 90(6.2) PSI(bar)
• Air inlet Size: 1/4 Inch-NPT/PT
• Min. Hose Size: 3/8(10) Inch(mm)
• Nosepieces Equipped: 3/32(2.4)1/8(3.2)5/32(4.0)3/16(4.8) Inch(mm)

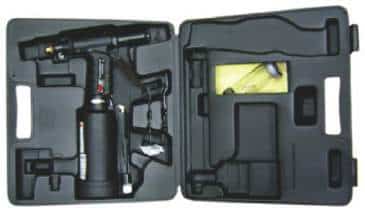

[ Accessories ]

• Riveter X 1
• Small Wrench X 1
• Large Wrench X 1
• Collection Bottle X 1

DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
