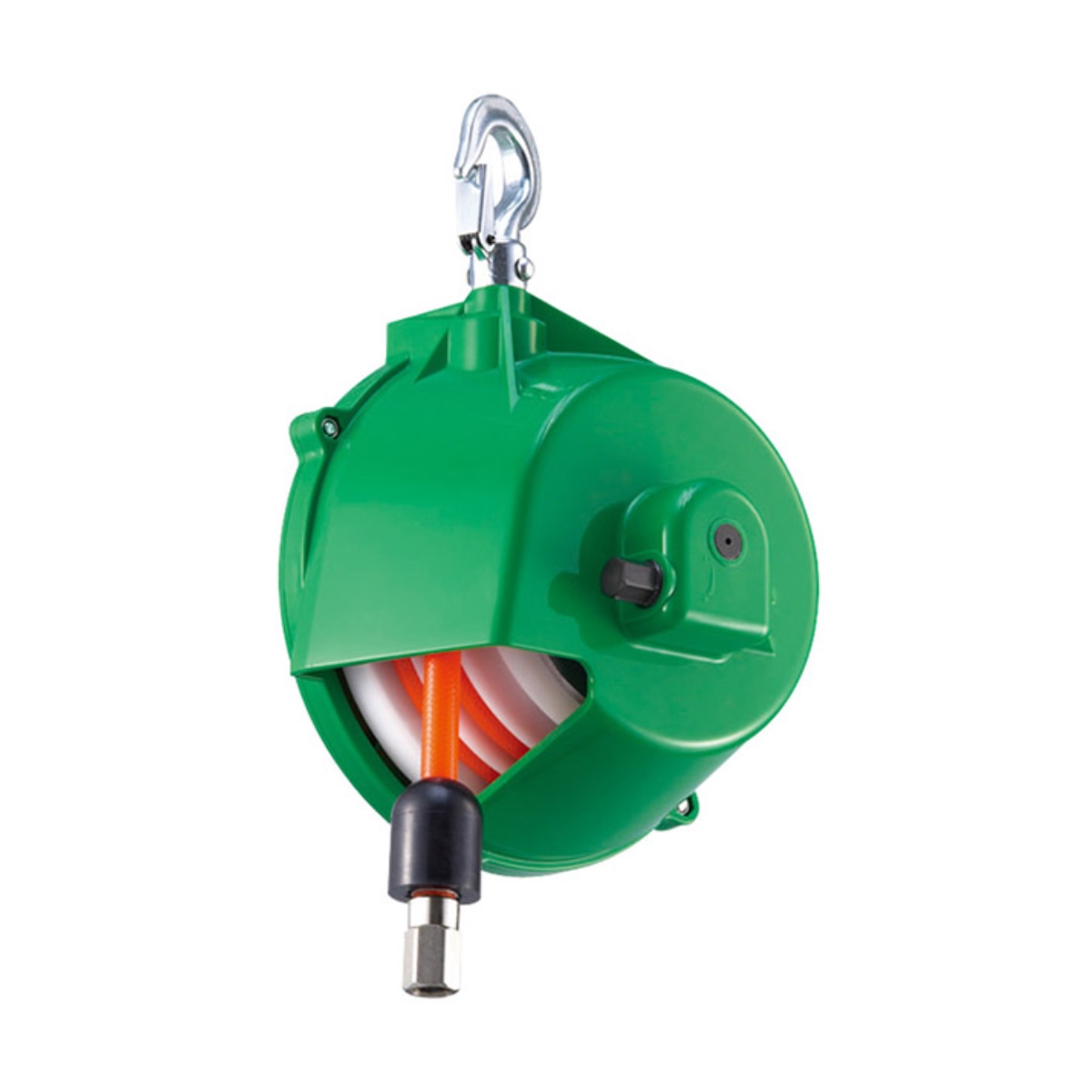

ZTHB15 Air Hose Reel with Spring Balancer
The ZTHB15 is a compact two-in-one Air Hose Reel and Spring Balancer that provides both compressed air delivery and ergonomic tool suspension in one integrated housing. Designed for light- to medium-duty pneumatic tools, it maintains consistent air flow while counterbalancing tool weight, giving operators smooth handling, reduced fatigue, and a clean, safe workspace. Featuring a high-tensile recoil spring, reinforced aluminum alloy housing, and precision hose guide system, the ZTHB15 ensures reliable hose retraction and balanced tool positioning. Its compact size, durable construction, and low-maintenance design make it ideal for production lines, assembly workstations, and service bays where space and efficiency matter.
Key Features
Dual-Function Design – Integrates air hose reel and spring balancer functions in a single compact unit.
Load Capacity up to 1.5 kg – Supports light and medium pneumatic tools while maintaining smooth balance.
Automatic Hose Retraction – Internal spring system rewinds the hose neatly after each use.
Consistent Air Flow – Swivel air joint prevents hose twisting and ensures stable air delivery to tools.
Adjustable Spring Tension – Fine-tune balance to match tool weight for effortless handling.
Reinforced Aluminum Housing – Lightweight yet durable for industrial environments.
Smooth Retraction System – Controlled rewind speed eliminates whip or recoil.
Built-In Safety Lock – Prevents accidental hose retraction during use or maintenance.
Corrosion-Resistant Finish – Powder-coated surface protects against moisture and wear.
Easy Installation – Mounts easily on walls, ceilings, or benches using a swivel bracket.
Applications
The ZTHB15 Air Hose Reel with Spring Balancer is ideal for light- to medium-duty pneumatic and assembly applications, including:
Automotive workshops and tire service areas – supplying and balancing air tools such as screwdrivers or small impact wrenches.
Electronics and appliance assembly – ensuring smooth operation of air screwdrivers and tightening tools.
Machinery and general manufacturing – keeping pneumatic tools accessible and well-balanced for continuous production.
Maintenance and service stations – improving safety and organization for portable air tools.
Packaging and finishing workstations – enabling tangle-free, ergonomic air supply management.
Performance Advantages
Improved Ergonomics – Counterbalances tool weight for reduced strain and greater precision.
Safer Work Environment – Keeps hoses organized and off the floor to prevent tripping hazards.
Efficient Air Management – Maintains steady air pressure and prevents hose damage.
Compact and Space-Saving – Dual-purpose design simplifies workstation layout.
High Reliability – Heavy-duty spring and sealed housing deliver consistent performance.
Low Maintenance – Pre-lubricated components and sealed springs reduce servicing needs.
Technical Specifications
Model: ZTHB15
Function: Air Hose Reel + Spring Balancer (Two-in-One Design)
Load Capacity: 0.5 – 1.5 kg (adjustable)
Hose Length: Approx. 1.3 m
Hose Diameter: 3/8″ or 1/2″ ID (custom options available)
Housing Material: Reinforced aluminum alloy or steel
Hose Material: Reinforced rubber or hybrid polymer air hose
Retracting System: High-tension coil spring, enclosed and pre-lubricated
Safety Mechanism: Ratchet lock and anti-recoil control
Mounting Type: Wall, ceiling, or bench installation with swivel bracket
Finish: Powder-coated, corrosion-resistant surface
Maintenance: Minimal; periodic hose and spring inspection recommended
The ZTHB15 Air Hose Reel with Spring Balancer provides an innovative, space-saving solution for both air delivery and tool suspension in modern industrial workspaces. Its automatic hose retraction, adjustable balancing system, and robust housing deliver smooth operation, improved ergonomics, and long-term durability. Ideal for assembly, maintenance, and repair environments, the ZTHB15 ensures safe, efficient, and organized pneumatic tool operation — combining two essential workstation functions in one reliable, maintenance-free system.
Features
- Adopting an 8.0 mm inner diameter hose to provide enough air flow to the air tool and equipment.
- It achieves a neat and orderly production line for enhancing working efficiency.
- An anti-falling device is provided in case the spring breaks.
- The installation is fast and convenient with a 360-degree installation hook.
- Worm gear provides more precise force adjustment.
