ZTU-391C – Central-Vacuum Rust & Paint Removal Tool
The ZTU-391C is a high-performance central-vacuum pneumatic tool designed for efficient and clean rust and paint removal. Equipped for connection to a centralized dust extraction system, it provides industrial-level debris control while delivering powerful surface preparation for automotive, metal fabrication, and maintenance applications.
Key Features
Central-Vacuum Compatible – Connects to a central vacuum system for continuous, dust-free operation.
High-Efficiency Pneumatic Motor – Ensures fast, consistent performance for rust and paint removal.
Ergonomic and Balanced Design – Lightweight and comfortable for extended operation.
Durable Industrial Construction – Built to withstand the rigors of heavy-duty workshops.
Versatile Abrasive Compatibility – Supports various sanding and blasting pads for different surfaces.
Precision Cleaning – Compact design allows access to corners, edges, and detailed work areas.
Advantages & Benefits
Clean Work Environment – Central vacuum system captures dust and debris efficiently.
Rapid Material Removal – Quickly removes rust, paint, and coatings, saving time.
Operator Comfort – Ergonomic grip and lightweight design reduce fatigue during prolonged use.
Versatile Applications – Suitable for automotive, metal fabrication, marine, aerospace, and industrial surfaces.
Durable & Reliable – Long-lasting, industrial-grade construction ensures dependable performance.
Applications
Automotive Repairs & Bodywork – Efficient removal of rust and paint on panels and frames.
Industrial Maintenance – Surface preparation on machinery, equipment, and structural components.
Metal Fabrication – Prepares metal surfaces for painting, coating, or welding.
Marine & Aerospace Maintenance – Removal of corrosion and coatings on metal parts.
Workshop & Manufacturing Use – Ideal for high-volume, clean, and precise surface prep tasks.
Why Choose the ZTU-391C?
The ZTU-391C Central-Vacuum Rust & Paint Removal Tool combines power, precision, and industrial-grade dust management. Perfect for professionals who need efficient surface preparation without compromising cleanliness, it is engineered for durability, operator comfort, and reliable performance in demanding environments.
- Innovative 180° rotational handle for precise leverage and control.
- Unique double-sided safety guards and integrated dust extraction.
- System for safe and clean operation.
- Planetary gear system for increased torque.
- Ergonomic cushion grip insulates against cold and vibration.
- The swivel exhaust outlet located at the rear of the tool facilitates easy operation.
- Paddle-style trigger for precise speed control.
- Increase the baffle to prevent hands from being injured.
- Integrated Safety and Dust Extraction System.

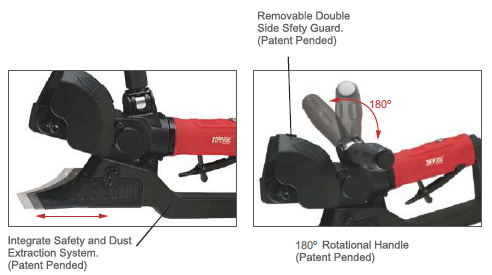

- Integrate the Safety and Dust Extraction System. (Patent Pended)
- Removable Double-Sided Safety Guard. (Patent Pended)
- 180° Rotational Handle. (Patent Pended)
 |  |  |
Specification:
- Spindle Thread: 9 mm
- Net Weight: 2.7(1.2) lbs(kgs)
- Length: 10(254) in.(mm)
- Free Speed: 4000 rpm
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 3.5 cfm

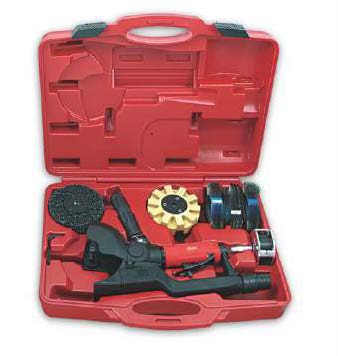

ZTU-391CK
Central-Vacuum Rust & Paint Removal Tools Kit
Specifications
- 1 pc Paint Removal Tool
- 1 pc Rubber Eraser Wheel
- 1 pc Stripping Wheel
- 1 pc Hub
- 3 pcs Wire Wheel
- 1 pc Nipple
- 1 pc Hex
- 1 pc Screw
- 1 pc Blow Molded Cast
| Model | Spindle Thread mm | Weight lbs(kgs) | Length inch(mm) | rpm | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Avg. Air Cons. cfm |
| ZTU391 | 9 | 2.7(1.2) | 10(254) | 4000 | 1/4 | 3/8(10) | 3.5 |
| ZTU391C | 9 | 2.7(1.2) | 10(254) | 4000 | 1/4 | 3/8(10) | 3.5 |
| ZTU391S | 9 | 2.7(1.2) | 10(254) | 4000 | 1/4 | 3/8(10) | 3.5 |
 |  |  |  |
| ZST-BTRE115-30 Rubber eraser wheel Wheel diameter 4″(103mm) Wheel width 1.2″(30mm) | ZST-BTRE115-30A rubber-based wheel Wheel diameter 4″(103mm) Wheel width 1.2″(30mm) | ZBT246655 rubber eraser wheel Wheel diameter 4″(103mm) Wheel width 1.2″(30mm) | ZST-BT246652 Stripping wheel Wheel diameter 4″(103mm) Wheel width 1.2″(30mm) |
 |  |  |  |
| ZBTWW103-23-7 Wire wheel(Coarse) Wire diameter 0.028″(0.7mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | ZBTWW103-23-5.5 Wire wheel(Medium) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | ZBTWW103-23-5 Wire wheel(Fine) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | ZST-BT246655A-K03 Hub Hub width 0.91″(23mm) |
 |  |  | |
| ZBTWW103-23-7ASS Stainless steel wire(Coarse) Wire diameter 0.028″(0.7mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | ZBTWW103-23-5ASS Stainless steel wire(Medium) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | ZBTWW103-23-5SS Stainless steel wire(Fine) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.91″(23mm) | |
 |  |  |  |
| ZBTWW103-11-7AM Wire wheel(Coarse) Wire diameter 0.028″(0.7mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) | ZBTWW103-11-5AM Wire wheel(Medium) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) | ZBTWW103-11-5M Wire wheel(Fine) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) | ZST-BT28068-K03 Hub Hub width 0.43″(11mm) |
 |  |  | |
| ZBTWW103-11-7ASS Stainless steel wire(Coarse) Wire diameter 0.028″(0.7mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) | ZBTWW103-11-5ASS Stainless steel wire(Medium) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) | ZBTWW103-11-5SS Stainless steel wire(Fine) Wire diameter 0.019″(0.5mm) Wheel diameter 4″(103mm) Wheel width 0.43″(11mm) |
