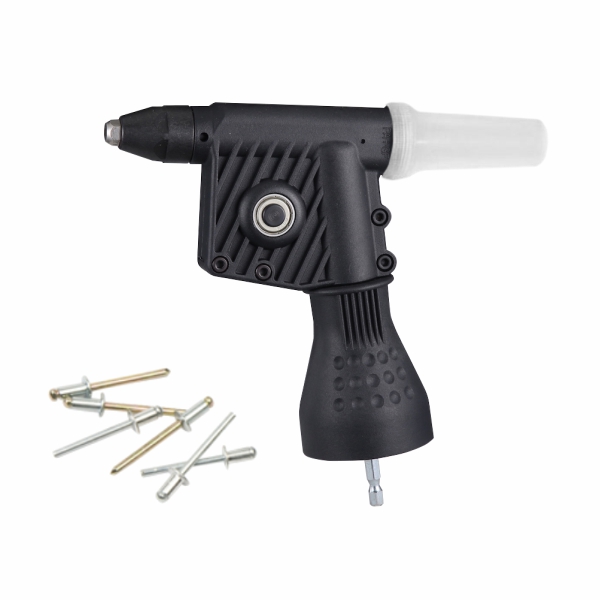

ZARA-48 3/16 inch Riveter Angle Adaptor
Specification:
- Riveter Adaptor: 3/16″(4.8) inch(mm)
- Min. torque strength: 8(11) ft/lbs(Nm)
- Max. rpm: 1000
- Nosepiece: 3/32″(2.4)1/8″(3.2)5/32″(4.0)3/16″(4.8)
- Hex shank: 1/4″(6.35) inch(mm)
- Dimension: L195 x H185 x W58.5 mm
| Model | Riveter Adaptor inch(mm) |
Min. torque strength ft/lbs(Nm) |
Max. rpm | Nosepiece inch(mm) |
Hex shank inch(mm) |
Dimension mm |
| ZRA-48 | 3/16(4.8) | 8(11) | 1000 | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
1/4(6.35) | 59 x 158 |
| ZRA-64 | 1/4(6.4) | 37(50) | 800 | 1/8(3.2)5/32(4.0) 3/16(4.8)1/4(6.4) |
1/4(6.35) | 59 x 173 |
| ZARA-48 | 3/16(4.8) | 8(11) | 1000 | 3/32(2.4)1/8(3.2) 5/32(4.0)3/16(4.8) |
1/4(6.35) | L195 x H185 x W58.5 |
