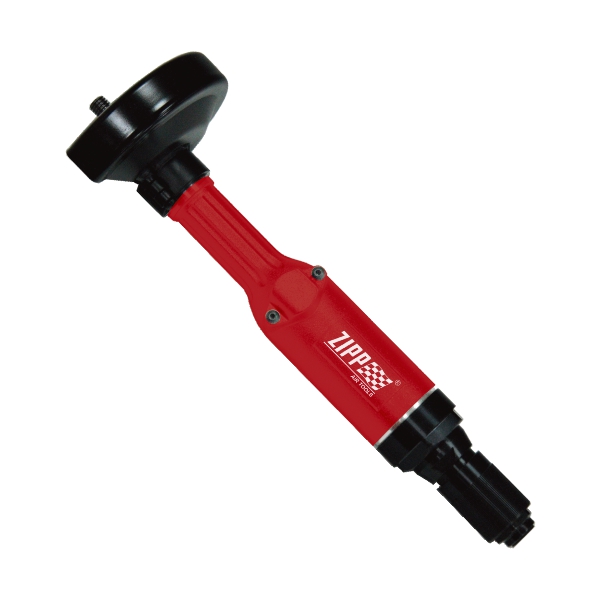

ZSG-106A Air Straight Grinders
Specification:
- Throttle Type: Roll
- Grinding Wheel: 6x1x5/8(150x25x15.8) inch(mm)
- Spindle Thread Size: 5/8×11
- Free Speed: 6300 rpm
- HP: 1.4
- Max.Air Cons.: 24 SCFM
- Overall Length Model: 16-47/64(425) inch(mm)
- Net Weight: 4.14(1.88) lbs(kgs)
- Air Hose Size: 12.7″
- Air Inlet Thread Size: 3/8″
Model | Throttle Type | Grinding Wheel inch(mm) | Spindle Thread Size | Free Speed rpm | HP | Max.Air Cons. SCFM | Overall Length Model inch(mm) | Net Weight lbs(kgs) | Air Hose Size | Air Inlet Thread Size |
ZSG-105A | Roll | 5×3/4×1/2 (125x19x12.7) | 1/2×12 | 7600 | 1.3 | 20 | 15-3/4(400) | 2.79(1.27) | 12.7 | 3/8 |
ZSG-105B | Lever | 5×3/4×1/2 (125x19x12.7) | 1/2×12 | 7600 | 1.3 | 20 | 19-11/16(501) | 2.79(1.27) | 12.7 | 3/8 |
ZSG-106A | Roll | 6x1x5/8 (150x25x15.8) | 5/8×11 | 6300 | 1.4 | 24 | 16-47/64(425) | 4.14(1.88) | 12.7 | 3/8 |
ZSG-106B | Lever | 6x1x5/8 (150x25x15.8) | 5/8×11 | 6300 | 1.4 | 24 | 20-33/64(521) | 4.14(1.88) | 12.7 | 3/8 |
ZSG206B | Lever | 6x1x5/8 (150x25x15.8) | 5/8×11 | 6300 | 1.4 | 24 | 20(510) | 3.27(1.48) | 12.7 | 3/8 |
ZSG306B | Lever | 5/8″ Cone Wheel | 5/8×11 | 6300 | 1.4 | 24 | 20(510) | 4.1(1.86) | 12.7 | 3/8 |
