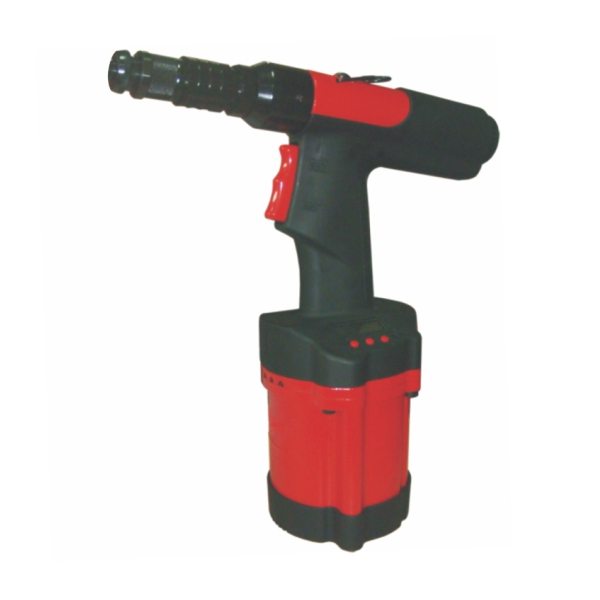

ZRS2508M Air Rivet Stud Tool – FOR METRIC SYSTEM
The ZRS2508M Air Rivet Stud Tool is an industrial-grade tool for fast and efficient rivet stud installation. Engineered to provide precision and durability, this tool supports high-volume production environments by offering a reliable, air-powered solution for fastening tasks. It’s ideal for automotive, aerospace, and sheet metal applications where secure stud installation is crucial.
Key Features
- Air-Powered Efficiency: It operates with a powerful pneumatic mechanism that delivers consistent force, allowing rapid and smooth rivet stud installation.
- Lightweight and Ergonomic Design: Constructed to reduce operator fatigue during prolonged use, with a comfortable grip that enhances control and accuracy.
- Durable Build: Made from high-strength materials that resist wear and tear, ensuring long-term performance in demanding environments.
- Precise Control: Allows for exact positioning and secure fastening of rivet studs, reducing error rates and ensuring high-quality assembly.
- Easy Maintenance: Features an accessible design that simplifies tool servicing and maintenance, reducing downtime.
Applications
- Automotive Industry: Ideal for attaching rivet studs in car panels, body frames, and components.
- Aerospace and Aviation: Suitable for precision riveting in aircraft manufacturing and maintenance.
- Sheet Metal Fabrication: Supports secure fastening in various sheet metal applications, including HVAC, cabinetry, and electronics enclosures.
- General Manufacturing: Reliable for multiple assembly tasks in heavy-duty manufacturing processes.
Benefits
- Increased Productivity: Air-driven power speeds up installation, saving time and enhancing production throughput.
- Consistent Quality: Ensures uniform fastening, resulting in high-quality assemblies with minimized risk of stud loosening or misalignment.
- User-Friendly: Ergonomic features promote ease of use, reducing strain on operators and improving job satisfaction.
- Cost-Effective: Durable construction minimizes the need for frequent tool replacements, providing long-term value.
The ZRS2508M Air Rivet Stud Tool is a top choice for industries demanding reliable, precise, fast-fastening solutions. Its efficient performance, durability, and ease of use make it a valuable asset for high-output production settings where quality and speed are critical.
Features
- It features the most advanced patented digital module, enabling operators to know the rivet tool setting capacity instantly under various air supply conditions and the rivet setting cycles performed during their working period.
- It will also remind operators when to do service or maintenance to the tool at proper intervals.
- It will help to cease the controversy about warranty issues, especially if the tool has been misused or abused with abnormally high air pressure that exceeds the design specification.
- It is built with patented “Module units assembled in composite clam shell housing” for ease of tool service.
- Forged and heat-treated aluminum alloy made Hydraulic Section for the best rigidity.
- Easy adjustable Head & Nut designed for obtaining the most effective stroke.
- Ergonomic texture-coated composite housing for operator’s comfort.
- Swivel air inlet design for maneuverability works.
- Aluminum Alloy Forged Hydraulic Section
- Adjustable Stroke
- Air Motor
- Air Actuating Module
- Composite Clam Shell Housing
- AAA Battery Port
- LCD Module
- USB Port
Specification:
- Traction Power: 5500(2500) Ibf(kgf)
- Stroke Length: 8 mm
- Net Weight: 5.4(2.4) lbs(kgs)
- Rivet Nut / Rivet Stud Setting Capacity: M4~M10 rivet stud in all materials
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of your selected model.
| Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Rivet Nut / Rivet Stud Setting Capacity |
| ZRN1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet nut in Hex./Steel 1/2″-13 need 100psi/7 bar operating pressure |
| ZRN1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet nut in Hex./Steel M12 needs 100psi/7 bar operating pressure |
| ZRN2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~1/2″-13 rivet nut in all materials |
| ZRN2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRN2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M12 rivet nut in all materials |
| ZRS1606E | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606ED | 3500(1600) | 1/4(6) | 4.9(2.2) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS1606M | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS1606MD | 3500(1600) | 1/4(6) | 4.9(2.2) | M4~M10 rivet stud in all materials |
| ZRS2508E | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508ED | 5500(2500) | 5/16(8) | 5.4(2.4) | #8-32~3/8″-16 rivet stud in all materials |
| ZRS2508M | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
| ZRS2508MD | 5500(2500) | 5/16(8) | 5.4(2.4) | M4~M10 rivet stud in all materials |
