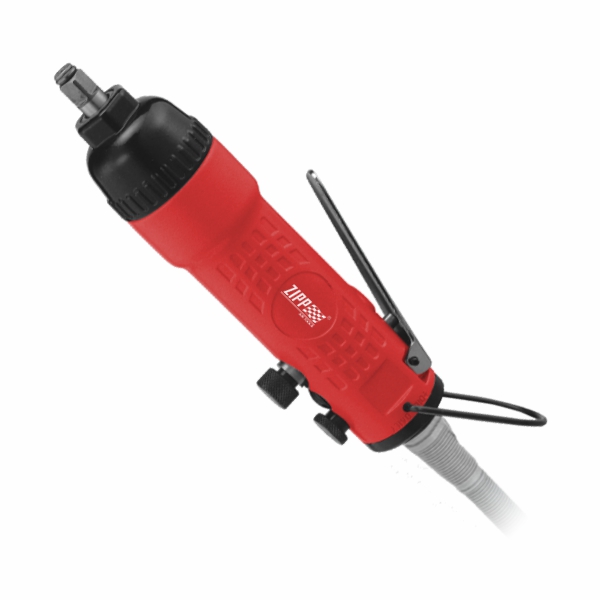

ZAW-910B1 3/8 inch Air Wrench-with muffler / Two Hammer Type, Rear Exhaust
Specification:
- Bolt Size Capacity: M10
- Working Torque: 59(80)ft-lb(Nm)
- MAX. Torque: 96(130)ft-lb(Nm)
- Free Speed: 8000rpm
- Air Consumption: 184(6.5)l/min(cfm)
- Overall Length: 9.06(230)inch(mm)
- Air Inlet: 1/4P.T
- Net Weight: 2.65(1.2)lb(kg)
- Sound Level: 80db(A)
| Model | Bolt Size Capacity |
Working Torque ft-lb(Nm) |
MAX. Torque ft-lb(Nm) |
Free Speed rpm |
Air Consumption l/min(cfm) |
Overall Length inch(mm) |
Air Inlet P.T |
Net Weight lbs(kgs) |
Sound Level db(A) |
| ZAW-412B2 | M8 | 20(27) | 26(35) | 11000 | 127(4.5) | 7.01(178) | 1/4 | 1.5(0.68) | 89 |
| ZAW-412B3 | M8 | 20(27) | 26(35) | 11000 | 127(4.5) | 7.01(178) | 1/4 | 1.5(0.68) | 89 |
| ZAW-417B | M10 | 59(80) | 148(200) | 8000 | 212(7.5) | 8.86(225) | 1/4 | 2.36(1.07) | 90 |
| ZAW-910B1 | M10 | 59(80) | 96(130) | 8000 | 184(6.5) | 9.06(230) | 1/4 | 2.65(1.2) | 80 |
| ZAW-410B | M10 | 59(80) | 148(200) | 8300 | 212(7.5) | 7.48(190) | 1/4 | 2.16(0.98) | 94 |
| ZAW-421B3 | M10~M12 | 66(90) | 177(240) | 8000 | 283(10) | 7.48(190) | 1/4 | 2.34(1.06) | 97 |
| ZAW-211B | M12~M14 | 118(160) | 207(280) | 5500 | 240(8.5) | 10.24(260) | 1/4 | 3.75(1.7) | 85 |
| ZAW-241B | M16~M18 | 236(320) | 369(500) | 4400 | 283(10) | 13(330) | 1/4 | 7.5(3.4) | 95 |
Recommended Gauge Air Pressure: 60~90psi
