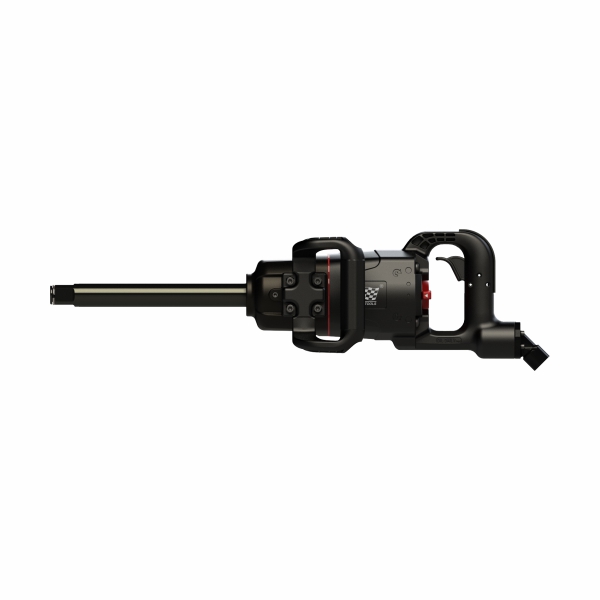

ZIW1201-8 1 inch Composite Impact Wrench w/8 inch extension / Side Exhaust
- Twin hammer Anvil Material
- Japan SNCM 616
- Cast iron cylinder
- Cylinder Material FCD45
- Heat treatment HRC 47~52°
- Blade auxiliary spring meansSpring Material Stainless steel (304)Customized spring holder.
- 1 million tests by stretching test pass.
Specification:
- Square Drive: 1(25) inch(mm)
- Free Speed: 5500 rpm
- Max. Torque(15 secs): 2400(3240) ft-lb(Nm)
- Working torque (5 secs): 2200(2970) ft-lb(Nm)
- Avg. Air Cons: 7.5(212) cfm(l/min)
- Net Weight: 17.16(7.9) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Impact mechanism: Twin Hammer
| Model | Square Drive inch(mm) |
Free Speed rpm |
Max. Torque (15 secs) ft-lb(Nm) |
Working torque (5 secs) ft-lb(Nm) |
Avg. Air Cons. cfm(l/min) |
Net Weight lbs(kgs) |
Air Inlet Size inch-NPT/PT |
Impact mechanism |
| ZIW1200 | 1(25) | 5500 | 2400(3240) | 2200(2970) | 7.5(212) | 12.98(5.9) | 1/4 | Twin Hammer |
| ZIW1200-6 | 1(25) | 5500 | 2400(3240) | 2200(2970) | 7.5(212) | 14.96(6.8) | 1/4 | Twin Hammer |
| ZIW1201 | 1(25) | 5500 | 2400(3240) | 2200(2970) | 7.5(212) | 14.3(6.5) | 1/4 | Twin Hammer |
| ZIW1201-8 | 1(25) | 5500 | 2400(3240) | 2200(2970) | 7.5(212) | 17.16(7.9) | 1/4 | Twin Hammer |
