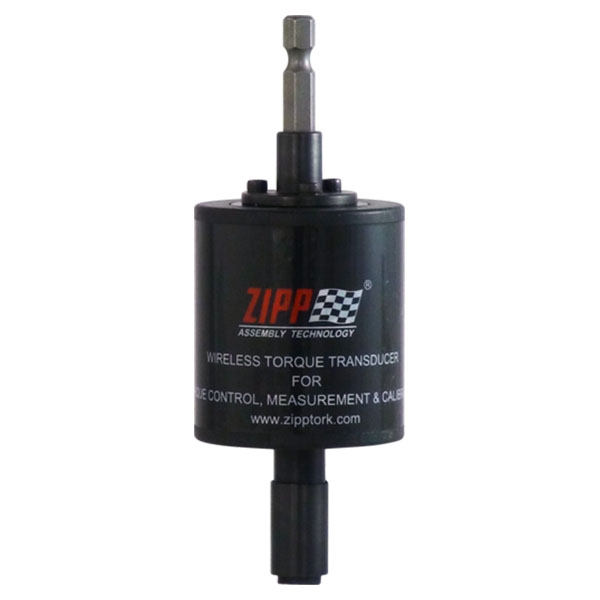

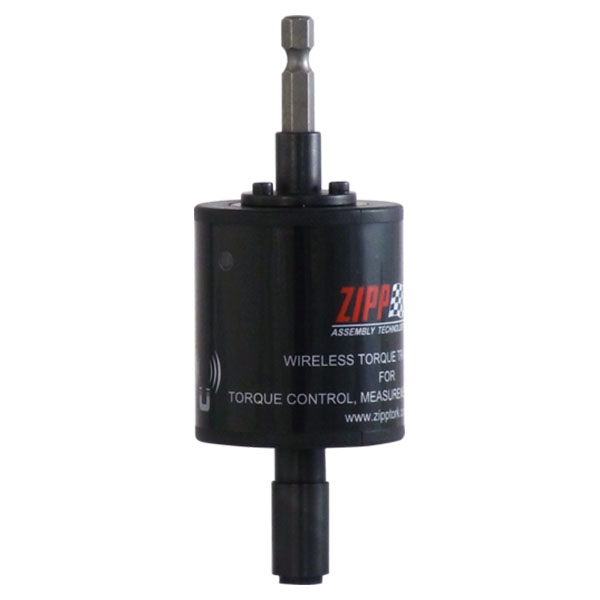

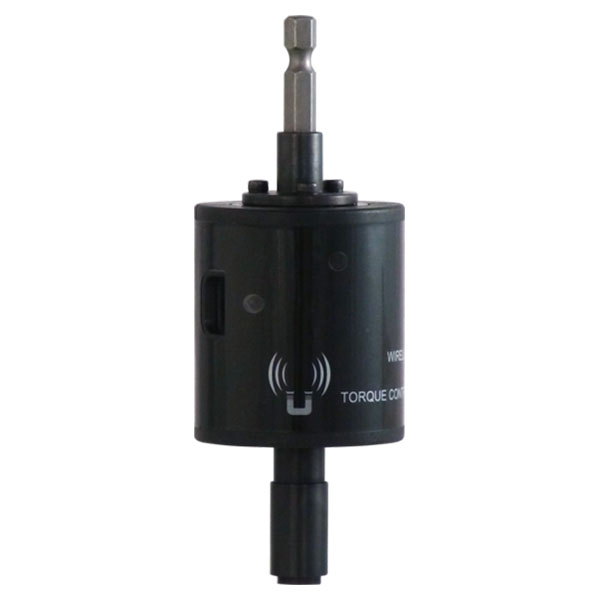

TTEB Series Wireless Torque Transducer

The TTEB Series Wireless Torque Transducer with Bit Holder Output is an advanced tool for precise torque measurement in applications requiring a bit holder interface. This transducer is ideal for use in industries where accuracy, reliability, and ease of data collection are crucial, such as electronics assembly, automotive manufacturing, and industrial maintenance. The TTEB Series features wireless data transmission, providing real-time feedback and enhancing operational efficiency.

Key Features and Benefits

• Precise Torque Measurement with Bit Holder Output: The TTEB Series is specifically designed to deliver accurate torque measurements for tools that utilize bit holders. This precision ensures that fasteners are tightened to the exact specified torque, which is critical for maintaining the integrity of assemblies, especially in sensitive applications like electronics and precision machinery.
• Wireless Data Transmission: The TTEB Series is equipped with wireless technology that allows for real-time transmission of torque data to compatible devices such as PCs, laptops, or monitoring systems. This eliminates the need for physical connections, provides greater flexibility and mobility in the workspace, and enables more efficient data collection and analysis.
• Bit Holder Interface: Designed with a bit holder output, the TTEB Series Transducer is compatible with a wide range of bit types, making it versatile and adaptable to various tasks. This interface is particularly beneficial in environments requiring quick tool changes, allowing for seamless transitions between different types of fasteners.
• High Accuracy and Reliability: The TTEB Series Transducer is engineered for high-precision torque measurement, ensuring consistent and reliable results. This accuracy is essential for applications where even minor deviations can lead to product defects or compromised safety.
• Durable and Compact Design: Built with industrial-grade materials, the TTEB Series Transducer is designed to withstand the rigors of daily use in demanding environments. Its compact and durable construction ensures long-term reliability, even under harsh conditions, making it an ideal choice for high-volume production lines and fieldwork.
• User-Friendly Operation and Integration: The TTEB Series is designed for easy setup and operation. Its intuitive wireless interface simplifies monitoring and recording torque data, while its compact design ensures that it integrates seamlessly with existing tools and systems.
• Versatile Applications: The TTEB Series suits various industrial and manufacturing applications, including electronics assembly, automotive production, and general industrial maintenance. Its compatibility with bit holders makes it particularly useful in tasks that require precise torque application with various bit types.

Applications

The TTEB Series Wireless Torque Transducer is ideal for applications such as:

• Electronics Assembly: This tool provides precise torque measurement for the assembly of electronic components, ensuring that delicate parts are secured without damage.
• Automotive Manufacturing: Ensures accurate torque application in the assembly of automotive components, contributing to the safety and reliability of vehicles.
• Industrial Maintenance: Used in maintenance and repair operations to verify that fasteners are tightened to the correct specifications, helping extend the machinery and equipment’s lifespan.
• Precision Engineering: Supports tasks that require meticulous torque control, such as assembling precision instruments and machinery, where accuracy is paramount.

Why Choose the TTEB Series Wireless Torque Transducer?

The TTEB Series Wireless Torque Transducer offers exceptional precision, versatility, and convenience for professionals who require accurate torque measurement with a bit holder interface. Its wireless capabilities enhance operational efficiency by enabling real-time data transmission and eliminating the need for cumbersome cables. The durable design ensures long-term reliability, making it an essential tool in various industrial applications, from electronics assembly to automotive manufacturing. Whether in a production environment or performing maintenance tasks, the TTEB Series provides the precision and ease of use needed to achieve optimal results.

• The only wireless Torque Transducer applicable to impact or oil pulse torque tool for dynamic bolting.
• It is designed with a unique patented anti-vibration mechanism for dynamic bolting torque control under violent impacts.
• Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
• Optional Accessories:
  1. Dongle for Android Devices or Windows PC/Laptop.
  2. Transducer Protection Cover.

Charger	Type-C 5V/1A
IO(1)	USB Type-C *1
IO(2) Wireless	RF 2.4G up to 20M
Zero Balance	<±0.5% FSD/°C
Static Accuracy	±1% FSD
Temperature	-10°C~60°C
Humidity	10~75% Non-condensing
Charging time	5% to 100%, 2 hours
Optional Dongle: P/N: DG-CP for Android P/N: DG-WIN for Window	Optional Transducer Protection Cover: P/N: TPC-100 for 20/50/100Nm P/N: TPC-250 for 180/250Nm P/N: TPC-500 for 500/750Nm P/N: TPC-2000 for 1000/1500/2000Nm

Software and Functions

• Applicable to:
  Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type, Torque Tool, and click Wrench.
• Measurement: Torque, Angular Movement & Pulse Count.
• RF Working Frequency: 60 channels can be paired with TCA/TCB.
• Functions Check: When turned on, the status of power rate, signal quality, torque, angle, etc., is automatically checked.
• Switch: Use a magnet to turn on.
• LED Light:
  Blue/Orange twin color:
  Orange last long~Low Power, Blue last long~RF in communication, Blue twinkling~pairing with Controller, Orange
  Twinkling~Abnormal.
  Red/Green twin color: Red~In Charging, Green~Full Charge.

Minimum system requirements:

Operating system	Windows 10 or above	Android 7.0 or above
Minimum CPU	Core i3	Quad-core
Minimum system memory (RAM)	4G	3G
Minimum free storage space:	32GB	32GB

Warranty period:

• Torque Controller – 12 months from purchase date.
  The manufacturer will repair or replace defects due to faulty materials or workmanship. This Warranty does not cover part failure due to a broken or missing seal label, misuse, modification, negligence, abuse, or normal wear and tear.
• Transducer –
  TTE(H) series: 12 months from purchase date or 200,000 cycles.
  TTA(H) & TTEB series: 12 months from purchase date or 500,000 cycles.
  Battery: 3 months from purchase date.
  Signal acquisition board: 12 months from purchase date.
  The manufacturer will repair or replace defects due to faulty materials or workmanship. This Warranty does not cover part failure due to over torque, using TTA(H) series on impact tools or cordless tools, broken /missing seal labels, misuse,
  modification, negligence, abuse, or normal wear and tear.
• Dongle – 12 months from purchase date.

This series of transducers can be custom-made with specific sizes of hexagonal openings for equivalent bolts or nuts.

Item
Tnom	50~2000Nm	5~20Nm
Power	DC 3.7V / 650 mAh	DC 3.7V / 650 mAh
Measured Range	10% Tnom~100% Tnom	10% Tnom~100% Tnom
Torque Resolution (Nm)	0.1% Tnom	0.1% Tnom
Accuracy (CW)	±1%	±1%
Accuracy (CCW)	±2%	±2%
Static Measured Angle Range	0°~360°	0°~360°
Angle Resolution (Degree)	0.5°	0.5°
Maximum Torque (Nm)	100% Tnom	100% Tnom
Wireless communication	RF 2.4GHz
Cable	USB-Type C
Charger	USB ( 5V/1A )
Operation Temperature (°C)	0°C~50°C
Storage Temperature (°C)	-10°C~60°C
