ZAG4140AM Air Angle Grinder
The ZAG4140AM Air Angle Grinder is a compact, heavy-duty pneumatic tool engineered for precision grinding, cutting, and finishing applications. With its angled head design and durable build, it is ideal for operators who require both power and control in industrial environments.
Key Features
High-Efficiency Air Motor – Delivers powerful and consistent grinding performance.
Angled Head Design – Provides excellent accessibility in confined or hard-to-reach areas.
Sturdy Construction – Built with high-strength materials to withstand harsh work conditions.
Rear Exhaust System – Directs air away from the operator for improved comfort and visibility.
Disc Compatibility – Fits standard cutting and grinding wheels for multi-purpose use.
Benefits
Industrial-Grade Power – Handles demanding grinding and cutting jobs with ease.
Operator Comfort & Control – Ergonomic handle reduces fatigue during prolonged operation.
Long Service Life – Rugged housing ensures reliability even in heavy-duty usage.
Versatile Performance – Suitable for grinding, deburring, surface prep, and cutting tasks.
Applications
Metal Fabrication – Weld cleanup, edge grinding, and surface finishing.
Automotive Repair & Maintenance – Cutting body panels, grinding metal parts, and rust removal.
Heavy Industry & Shipbuilding – Robust performance for demanding work environments.
General Workshop Use – Reliable tool for everyday cutting and grinding needs.
Why Choose the ZAG4140AM?
The ZAG4140AM Air Angle Grinder combines power, precision, and durability in one tool, making it the go-to choice for professionals in metalworking, automotive, construction, and maintenance sectors.
Specification:
- Throttle Type: Roll
- Grinding Wheel: 4(100) inch(mm)
- Free Speed: 13600 rpm
- Spindle Thread Size: M8x1.25P
- Angle Head Height: 3(76) inch(mm)
- Overall Length: 8-3/16(208) inch(mm)
- Net Weight: 2.0 kg
- Horse Power: 0.9 HP
- Max. Air Consumption: 33(0.95) cfm(m3/min)
| Model | Throttle Type | Grinding Wheel inch(mm) | Free Speed rpm | Spindle Thread Size | Angle Head Height inch(mm) | Overall Length inch(mm) | Net Weight kg | Max. Air Cons. cfm(m³/min) |
| ZAG4140AF | Roll | 4(100) | 13600 | 8x24UNF | 3(76) | 8-3/16(208) | 2.0 | 33(0.95) |
| ZAG4140AM | Roll | 4(100) | 13600 | M8x1.25P | 3(76) | 8-3/16(208) | 2.0 | 33(0.95) |
| ZAG4140BF | Lever | 4(100) | 13600 | 8x24UNF | 3(76) | 9-11/16(246) | 1.7 | 33(0.95) |
| ZAG4140BM | Lever | 4(100) | 13600 | M8x1.25P | 3(76) | 9-11/16(246) | 1.7 | 33(0.95) |

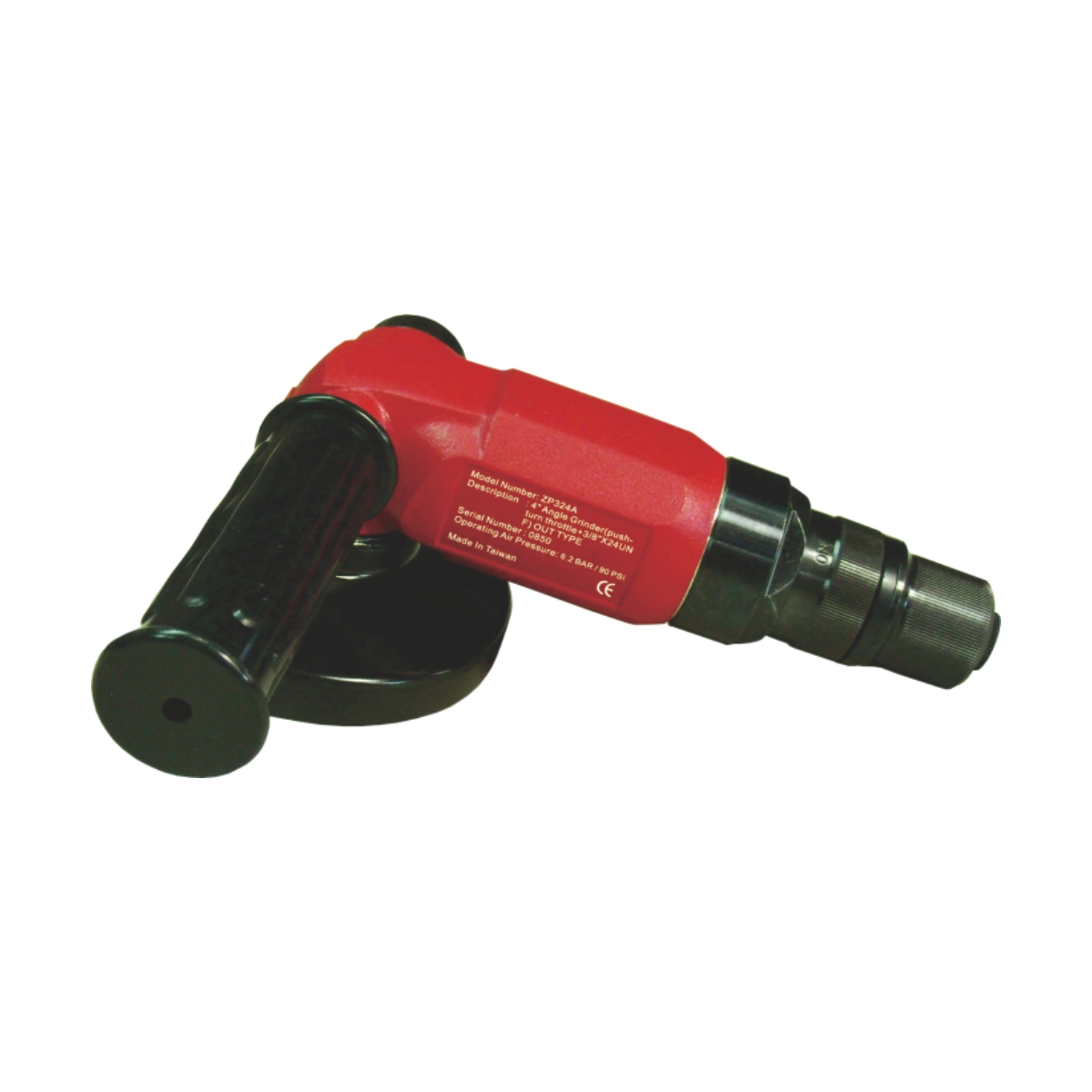

| ZAG5110AF | Roll | 5(125) | 10900 | 8x24UNF | 3(76) | 8-3/16(208) | 1.8 | 33(0.95) |
| ZAG5110AM | Roll | 5(125) | 10900 | M8x1.25P | 3(76) | 8-3/16(208) | 1.8 | 33(0.95) |
| ZAG5110AC | Roll | 5(125) | 10900 | 5/8x11UNC | 3(76) | 8-3/16(208) | 1.8 | 33(0.95) |
| ZAG5110AP | Roll | 5(125) | 10900 | M14x2.0P | 3(76) | 8-3/16(208) | 1.8 | 33(0.95) |
| ZAG5110BF | Lever | 5(125) | 10900 | 3/8x24UNF | 3(76) | 9-11/16(246) | 1.6 | 33(0.95) |
| ZAG5110BM | Lever | 5(125) | 10900 | M8x1.25P | 3(76) | 9-11/16(246) | 1.6 | 33(0.95) |
| ZAG5110BC | Lever | 5(125) | 10900 | 5/8x11UNC | 3(76) | 8-3/16(208) | 2.1 | 33(0.95) |
| ZAG5110BP | Lever | 5(125) | 10900 | M14x2.0P | 3(76) | 8-3/16(208) | 2.1 | 33(0.95) |
| ZAG7075AC | Roll | 7(180) | 7600 | 5/8x11UNC | 3-27/64(87) | 10(253) | 4.05 | 56(1.6) |
| ZAG7075AN | Roll | 7(180) | 7600 | M10x1.5P | 3-27/64(87) | 10(253) | 4.05 | 56(1.6) |
| ZAG7075AP | Roll | 7(180) | 7600 | M14x2.0P | 3-27/64(87) | 10(253) | 4.05 | 56(1.6) |
| ZAG7075BC | Lever | 7(180) | 7600 | 5/8x11UNC | 3-27/64(87) | 11-13/16(300) | 3.79 | 56(1.6) |
| ZAG7075BN | Lever | 7(180) | 7600 | M10x1.5P | 3-27/64(87) | 11-13/16(300) | 3.79 | 56(1.6) |
| ZAG7075BP | Lever | 7(180) | 7600 | M14x2.0P | 3-27/64(87) | 10(253) | 3.79 | 56(1.6) |
| ZAG9060AC | Roll | 9(230) | 5900 | 5/8x11UNC | 4-1/2(115) | 11(280) | 4.32 | 67(1.9) |
| ZAG9060AN | Roll | 9(230) | 5900 | M10x1.5P | 4-1/2(115) | 11(280) | 4.32 | 67(1.9) |
| ZAG9060AP | Roll | 9(230) | 5900 | M14x2.0P | 4-1/2(115) | 11(280) | 4.32 | 67(1.9) |
| ZAG9060BC | Lever | 9(230) | 5900 | 5/8x11UNC | 4-1/2(115) | 12-13/64(310) | 4.06 | 67(1.9) |
| ZAG9060BN | Lever | 9(230) | 5900 | M10x1.5P | 4-1/2(115) | 12-13/64(310) | 4.06 | 67(1.9) |
| ZAG9060BP | Lever | 9(230) | 5900 | M14x2.0P | 4-1/2(115) | 12-13/64(310) | 4.06 | 67(1.9) |
| ZAG460AC | Roll | – | 6000 | 5/8x11UNC | 3-55/64(98) | 8-3/16(208) | 1.4 | 33(0.95) |
| ZAG460BC | Lever | – | 6000 | 5/8x11UNC | 3-55/64(98) | 8-3/16(208) | 1.4 | 33(0.95) |
