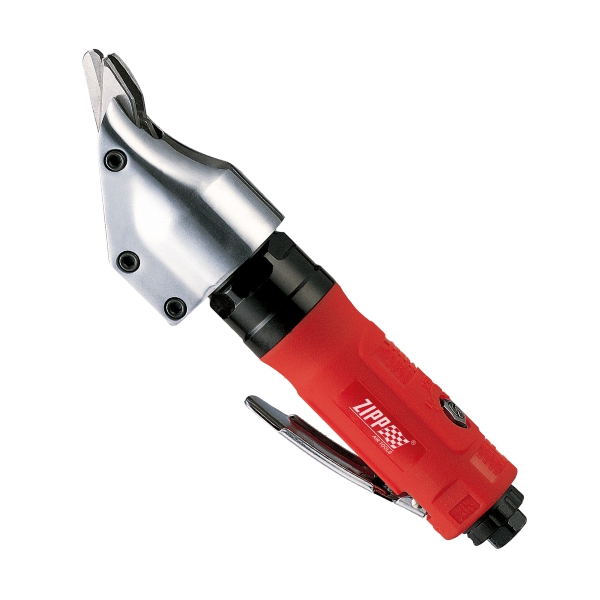

ZP226 Air Metal Shear
- The ZP226 Air Shear is ideal for the trimming , outlining and shearing of various sheet.
- The heavy-duty cutting blades make clean cut in cold rolled steel up to 18-gauge.
- The shear is ideal for body shop, sheet metal shop, and machine shop.
Specification:
- Cutting Capacity Steel: 1.2mm
- Cutting Capacity Aluminum: 1.6mm
- Net Weight: 2.2(1) Ibs(kg)
- Length: 10(255) inch(mm)
- rpm: 2600
- Air Inlet: 1/4 inch
- Min.Hose Size: 3/8(10) inch(mm)
- Avg. Air Cons.: 3.7 cfm
ZS-01
Shear Head
ZS-02
Scissors Head
| Model | Cutting Capacity Steel mm |
Cutting Capacity Aluminum mm |
Net Weight lbs(kgs) |
Length inch(mm) |
rpm | Air Inlet inch |
MinchHose Size inch(mm) |
Avg. Air Cons. cfm |
| ZP226 | 1.2mm | 1.6mm | 2.2(1) | 10(255) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZP227 | 1.2mm | 1.6mm | 2.2(1) | 11.4(290) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZP228 | 1.2mm | 1.6mm | 2.2(1) | 7.8(200) | 2600 | 1/4 | 3/8(10) | 3.7 |
| ZP229 | 1.2mm | 1.6mm | 2.2(1) | 9.4(240) | 2600 | 1/4 | 3/8(10) | 3.7 |
