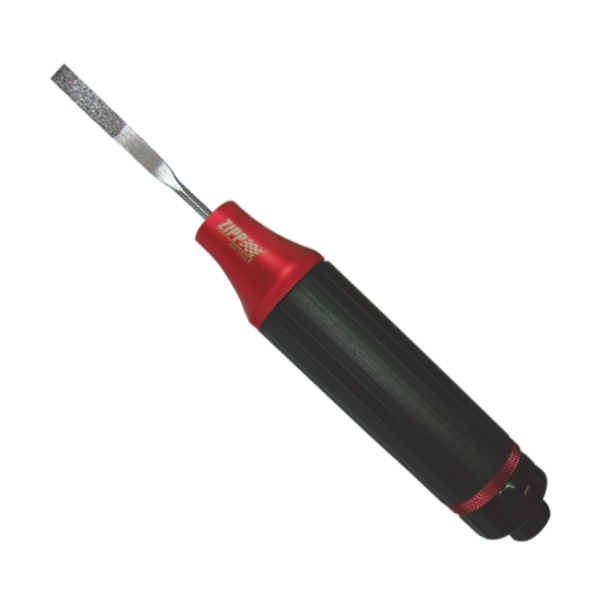

ZF-1M Low Vibration Mini Air Lapper – Precision and Efficiency Redefined
The ZF-1M Low Vibration Mini Air Lapper is a compact and efficient tool for high-precision lapping and polishing applications. Its ergonomic and vibration-dampening design ensures superior control and user comfort, making it the go-to tool for fine detailing and intricate surface finishing tasks in professional settings.
Key Features:
- Low Vibration Technology
- Reduces vibration levels to protect the user from fatigue and ensure accurate finishing.
- Improves precision for consistent and high-quality results.
- Compact and Lightweight Design
- Streamlined for accessing confined areas with ease.
- Lightweight construction minimizes operator strain during extended use.
- Durable and Reliable
- Constructed with industrial-grade materials for longevity and consistent performance.
- Designed to withstand demanding environments and applications.
- Versatile Application Compatibility
- It is ideal for use with a variety of lapping and polishing attachments.
- Suitable for delicate materials and complex geometries.
- User-Centric Features
- Ergonomic design ensures comfort and stability during operation.
- Simplified controls for ease of use, even by less experienced operators.
Specifications:
- Stroke Speed: Engineered for precise lapping and polishing tasks.
- Weight: Lightweight for easy maneuverability and reduced operator fatigue.
- Compatibility: Accepts a wide range of lapping and polishing accessories.
- Application Range: Suitable for fine detailing on metals, ceramics, and other materials.
Applications:
- Tool and Die Manufacturing
- It is ideal for fine polishing and lapping of intricate tools and dies.
- Mold Crafting
- Enables detailed finishing of molds with high accuracy.
- Electronics Industry
- Perfect for polishing delicate electronic components.
- Aerospace and Automotive Industries
- Provides precision surface finishing for complex components.
- General Maintenance and Repairs
- Versatile for a wide range of lapping and finishing applications.
Why Choose the ZF-1M Low Vibration Mini Air Lapper?
The ZF-1M combines precision, efficiency, and ergonomic convenience into a single tool, making it a reliable choice for professionals across various industries. Its low-vibration operation ensures consistent results while safeguarding user comfort, even during long hours of operation.
Choose the ZF-1M Low Vibration Mini Air Lapper for unparalleled accuracy and control in your lapping and polishing tasks. It’s the perfect tool to elevate your finishing work to a new standard of excellence.
Features
- High frequency with 1mm, 5mm & 10mm strokes for various kinds of surface finishing works such as precise and delicate die & mold surface lapping, finishing in confined areas, and general filing works.
- Designed with the following patents to ensure extremely low vibration and operator’s comfort.
。Portable Pneumatic Tool assembled with module units.
。Suspension Vibration-Reducing means for portable pneumatic tools. - Throttle-type flexible hose equipped for the best maneuverability of the tool.
- Adjustable side exhaust directs air away from operators.
- Rubber sleeve designed for operator’s comfort.

- Operating Module
- Rubber Sleeve
- Suspension Damping Spring
- Directional Air Exhaust
- Rotary Switch
- Air Inlet Module
All rotary-type Switches can be converted to safety lever-type Switches upon request.
Features
- It is ideal for precise and delicate filing castings, lapping die, and mold surfaces.
- High frequency with 0.5~1mm stroke for ZF-1, ZF-1T, ZF-1M, ZF-1MT
- High frequency with 3~5mm stroke for ZF-5, ZF-5T, ZF-5M, ZF-5MT
- High frequency with 7~10mm stroke for ZF-10, ZF-10T, ZF-10M, ZF-10MT
Specification:
- Blows Per Minute: 21000 bpm
- Stroke Length: 0.5~1 mm
- Avg. Air Cons.: 4(120) cfm(l/min)
- Net Weight: 0.73(0.33) lbs(kgs)
- Air Inlet Size: 1/4 inch-NPT/PT
- Min. Hose Size: 3/8(10) inch(mm)
- Vibration: 0.8 m/s2
- Sound Pressure: 72 dB(A)
Diamond File For ZF-1, ZF-1T, ZF-1M, ZF-1MT Type Air Lapper, 3mm Shank Diameter
201952
2mm Rectangular Diamond File
201954
4mm Rectangular Diamond File
201956
6mm Rectangular Diamond File
Hard Sponge Sandpaper block
- SB120-5 #120 100mm x 70mm x 25mm
- SB180-5 #180 100mm x 70mm x 25mm
- SB220-5 #220 100mm x 70mm x 25mm
- SB280-5 #280 100mm x 70mm x 25mm
COMPARISON CHARTS WITH COMPETITIVE DESIGNS ARE AVAILABLE UPON REQUEST.
Model | Blows Per Minute bpm | Stroke Length mm | Avg. Air Cons. cfm(l/min) | Net Weight lbs(kgs) | Air Inlet Size inch-NPT/PT | Minch Hose Size inch(mm) | Vibration m/s² | Sound Pressure dB(A) |
ZF-1 | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-1T | 21000 | 0.5~1 | 4(120) | 1.26(0.57) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-5 | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-5T | 11000 | 3~5 | 2.82(80) | 1.54(0.7) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-10 | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-10T | 9000 | 7~10 | 3.89(110) | 1.65(0.75) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-1M | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-1MT | 21000 | 0.5~1 | 4(120) | 0.73(0.33) | 1/4 | 3/8(10) | 0.8 | 72 |
ZF-5M | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-5MT | 11000 | 3~5 | 2.82(80) | 0.73(0.33) | 1/4 | 3/8(10) | 3.6 | 83 |
ZF-10M | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
ZF-10MT | 9000 | 7~10 | 3.89(110) | 0.73(0.33) | 1/4 | 3/8(10) | 4.6 | 71 |
*Operating Air Pressure: 90psi/6.2bar
